Dea Durga M
Fierce and effective.
- Warranty on quality in years.
- Ingress Protection, indicates the degree to which lighting fixtures are protected against dust and waterspray.
- Wireless lighting control based on Bluetooth.
- Digital dimming interface.
- Phase dimming systems dim the lights by changing the supply voltage.
- Dim to a warmer color from 3000K to 1800K for creating the right atmosphere.
- Replaceable (LED only) light source by a professional.
- Replaceable control gear by a professional.
Datasheets
| SKU | Luminous Flux [lm] | CCT [K] | CRI [Ra] | Beam Angle [deg] | Housing Colour | Reflector Colour |
|---|---|---|---|---|---|---|
| 175AW92724BM00 | 620lm | 2700K | 90 | 24° | White(RAL9003) | Black Matt |
| 175AW92736BM00 | 620lm | 2700K | 90 | 36° | White(RAL9003) | Black Matt |
| 175AW92755BM00 | 620lm | 2700K | 90 | 55° | White(RAL9003) | Black Matt |
| 175AB92724BM00 | 620lm | 2700K | 90 | 24° | Black(RAL9005) | Black Matt |
| 175AB92736BM00 | 620lm | 2700K | 90 | 36° | Black(RAL9005) | Black Matt |
| 175AB92755BM00 | 620lm | 2700K | 90 | 55° | Black(RAL9005) | Black Matt |
| 175AW93024BM00 | 630lm | 3000K | 90 | 24° | White(RAL9003) | Black Matt |
| 175AW93036BM00 | 630lm | 3000K | 90 | 36° | White(RAL9003) | Black Matt |
| 175AW93055BM00 | 630lm | 3000K | 90 | 55° | White(RAL9003) | Black Matt |
| 175AB93024BM00 | 630lm | 3000K | 90 | 24° | Black(RAL9005) | Black Matt |
| 175AB93036BM00 | 630lm | 3000K | 90 | 36° | Black(RAL9005) | Black Matt |
| 175AB93055BM00 | 630lm | 3000K | 90 | 55° | Black(RAL9005) | Black Matt |
| 175AW94024BM00 | 640lm | 4000K | 90 | 24° | White(RAL9003) | Black Matt |
| 175AW94036BM00 | 640lm | 4000K | 90 | 36° | White(RAL9003) | Black Matt |
| 175AW94055BM00 | 640lm | 4000K | 90 | 55° | White(RAL9003) | Black Matt |
| 175AB94024BM00 | 640lm | 4000K | 90 | 24° | Black(RAL9005) | Black Matt |
| 175AB94036BM00 | 640lm | 4000K | 90 | 36° | Black(RAL9005) | Black Matt |
| 175AB94055BM00 | 640lm | 4000K | 90 | 55° | Black(RAL9005) | Black Matt |
| 175AW92724BG00 | 620lm | 2700K | 90 | 24° | White(RAL9003) | Black High Gloss |
| 175AW92736BG00 | 620lm | 2700K | 90 | 36° | White(RAL9003) | Black High Gloss |
| 175AW92755BG00 | 620lm | 2700K | 90 | 55° | White(RAL9003) | Black High Gloss |
| 175AB92724BG00 | 620lm | 2700K | 90 | 24° | Black(RAL9005) | Black High Gloss |
| 175AB92736BG00 | 620lm | 2700K | 90 | 36° | Black(RAL9005) | Black High Gloss |
| 175AB92755BG00 | 620lm | 2700K | 90 | 55° | Black(RAL9005) | Black High Gloss |
| 175AW93024BG00 | 630lm | 3000K | 90 | 24° | White(RAL9003) | Black High Gloss |
| 175AW93036BG00 | 630lm | 3000K | 90 | 36° | White(RAL9003) | Black High Gloss |
| 175AW93055BG00 | 630lm | 3000K | 90 | 55° | White(RAL9003) | Black High Gloss |
| 175AB93024BG00 | 630lm | 3000K | 90 | 24° | Black(RAL9005) | Black High Gloss |
| 175AB93036BG00 | 630lm | 3000K | 90 | 36° | Black(RAL9005) | Black High Gloss |
| 175AB93055BG00 | 630lm | 3000K | 90 | 55° | Black(RAL9005) | Black High Gloss |
| 175AW94024BG00 | 640lm | 4000K | 90 | 24° | White(RAL9003) | Black High Gloss |
| 175AW94036BG00 | 640lm | 4000K | 90 | 36° | White(RAL9003) | Black High Gloss |
| 175AW94055BG00 | 640lm | 4000K | 90 | 55° | White(RAL9003) | Black High Gloss |
| 175AB94024BG00 | 640lm | 4000K | 90 | 24° | Black(RAL9005) | Black High Gloss |
| 175AB94036BG00 | 640lm | 4000K | 90 | 36° | Black(RAL9005) | Black High Gloss |
| 175AB94055BG00 | 640lm | 4000K | 90 | 55° | Black(RAL9005) | Black High Gloss |
| 175AW92724WH00 | 620lm | 2700K | 90 | 24° | White(RAL9003) | White |
| 175AW92736WH00 | 620lm | 2700K | 90 | 36° | White(RAL9003) | White |
| 175AW92755WH00 | 620lm | 2700K | 90 | 55° | White(RAL9003) | White |
| 175AB92724WH00 | 620lm | 2700K | 90 | 24° | Black(RAL9005) | White |
| 175AB92736WH00 | 620lm | 2700K | 90 | 36° | Black(RAL9005) | White |
| 175AB92755WH00 | 620lm | 2700K | 90 | 55° | Black(RAL9005) | White |
| 175AW93024WH00 | 630lm | 3000K | 90 | 24° | White(RAL9003) | White |
| 175AW93036WH00 | 630lm | 3000K | 90 | 36° | White(RAL9003) | White |
| 175AW93055WH00 | 630lm | 3000K | 90 | 55° | White(RAL9003) | White |
| 175AB93024WH00 | 630lm | 3000K | 90 | 24° | Black(RAL9005) | White |
| 175AB93036WH00 | 630lm | 3000K | 90 | 36° | Black(RAL9005) | White |
| 175AB93055WH00 | 630lm | 3000K | 90 | 55° | Black(RAL9005) | White |
| 175AW94024WH00 | 640lm | 4000K | 90 | 24° | White(RAL9003) | White |
| 175AW94036WH00 | 640lm | 4000K | 90 | 36° | White(RAL9003) | White |
| 175AW94055WH00 | 640lm | 4000K | 90 | 55° | White(RAL9003) | White |
| 175AB94024WH00 | 640lm | 4000K | 90 | 24° | Black(RAL9005) | White |
| 175AB94036WH00 | 640lm | 4000K | 90 | 36° | Black(RAL9005) | White |
| 175AB94055WH00 | 640lm | 4000K | 90 | 55° | Black(RAL9005) | White |
| 175AW92724CH00 | 620lm | 2700K | 90 | 24° | White(RAL9003) | Chrome |
| 175AW92736CH00 | 620lm | 2700K | 90 | 36° | White(RAL9003) | Chrome |
| 175AW92755CH00 | 620lm | 2700K | 90 | 55° | White(RAL9003) | Chrome |
| 175AB92724CH00 | 620lm | 2700K | 90 | 24° | Black(RAL9005) | Chrome |
| 175AB92736CH00 | 620lm | 2700K | 90 | 36° | Black(RAL9005) | Chrome |
| 175AB92755CH00 | 620lm | 2700K | 90 | 55° | Black(RAL9005) | Chrome |
| 175AW93024CH00 | 630lm | 3000K | 90 | 24° | White(RAL9003) | Chrome |
| 175AW93036CH00 | 630lm | 3000K | 90 | 36° | White(RAL9003) | Chrome |
| 175AW93055CH00 | 630lm | 3000K | 90 | 55° | White(RAL9003) | Chrome |
| 175AB93024CH00 | 630lm | 3000K | 90 | 24° | Black(RAL9005) | Chrome |
| 175AB93036CH00 | 630lm | 3000K | 90 | 36° | Black(RAL9005) | Chrome |
| 175AB93055CH00 | 630lm | 3000K | 90 | 55° | Black(RAL9005) | Chrome |
| 175AW94024CH00 | 640lm | 4000K | 90 | 24° | White(RAL9003) | Chrome |
| 175AW94036CH00 | 640lm | 4000K | 90 | 36° | White(RAL9003) | Chrome |
| 175AW94055CH00 | 640lm | 4000K | 90 | 55° | White(RAL9003) | Chrome |
| 175AB94024CH00 | 640lm | 4000K | 90 | 24° | Black(RAL9005) | Chrome |
| 175AB94036CH00 | 640lm | 4000K | 90 | 36° | Black(RAL9005) | Chrome |
| 175AB94055CH00 | 640lm | 4000K | 90 | 55° | Black(RAL9005) | Chrome |
| 175AW92724SG00 | 620lm | 2700K | 90 | 24° | White(RAL9003) | Silver High Gloss |
| 175AW92736SG00 | 620lm | 2700K | 90 | 36° | White(RAL9003) | Silver High Gloss |
| 175AW92755SG00 | 620lm | 2700K | 90 | 55° | White(RAL9003) | Silver High Gloss |
| 175AB92724SG00 | 620lm | 2700K | 90 | 24° | Black(RAL9005) | Silver High Gloss |
| 175AB92736SG00 | 620lm | 2700K | 90 | 36° | Black(RAL9005) | Silver High Gloss |
| 175AB92755SG00 | 620lm | 2700K | 90 | 55° | Black(RAL9005) | Silver High Gloss |
| 175AW93024SG00 | 630lm | 3000K | 90 | 24° | White(RAL9003) | Silver High Gloss |
| 175AW93036SG00 | 630lm | 3000K | 90 | 36° | White(RAL9003) | Silver High Gloss |
| 175AW93055SG00 | 630lm | 3000K | 90 | 55° | White(RAL9003) | Silver High Gloss |
| 175AB93024SG00 | 630lm | 3000K | 90 | 24° | Black(RAL9005) | Silver High Gloss |
| 175AB93036SG00 | 630lm | 3000K | 90 | 36° | Black(RAL9005) | Silver High Gloss |
| 175AB93055SG00 | 630lm | 3000K | 90 | 55° | Black(RAL9005) | Silver High Gloss |
| 175AW94024SG00 | 640lm | 4000K | 90 | 24° | White(RAL9003) | Silver High Gloss |
| 175AW94036SG00 | 640lm | 4000K | 90 | 36° | White(RAL9003) | Silver High Gloss |
| 175AW94055SG00 | 640lm | 4000K | 90 | 55° | White(RAL9003) | Silver High Gloss |
| 175AB94024SG00 | 640lm | 4000K | 90 | 24° | Black(RAL9005) | Silver High Gloss |
| 175AB94036SG00 | 640lm | 4000K | 90 | 36° | Black(RAL9005) | Silver High Gloss |
| 175AB94055SG00 | 640lm | 4000K | 90 | 55° | Black(RAL9005) | Silver High Gloss |
| 175AW92724GO00 | 620lm | 2700K | 90 | 24° | White(RAL9003) | Gold |
| 175AW92736GO00 | 620lm | 2700K | 90 | 36° | White(RAL9003) | Gold |
| 175AW92755GO00 | 620lm | 2700K | 90 | 55° | White(RAL9003) | Gold |
| 175AB92724GO00 | 620lm | 2700K | 90 | 24° | Black(RAL9005) | Gold |
| 175AB92736GO00 | 620lm | 2700K | 90 | 36° | Black(RAL9005) | Gold |
| 175AB92755GO00 | 620lm | 2700K | 90 | 55° | Black(RAL9005) | Gold |
| 175AW93024GO00 | 630lm | 3000K | 90 | 24° | White(RAL9003) | Gold |
| 175AW93036GO00 | 630lm | 3000K | 90 | 36° | White(RAL9003) | Gold |
| 175AW93055GO00 | 630lm | 3000K | 90 | 55° | White(RAL9003) | Gold |
| 175AB93024GO00 | 630lm | 3000K | 90 | 24° | Black(RAL9005) | Gold |
| 175AB93036GO00 | 630lm | 3000K | 90 | 36° | Black(RAL9005) | Gold |
| 175AB93055GO00 | 630lm | 3000K | 90 | 55° | Black(RAL9005) | Gold |
| 175AW94024GO00 | 640lm | 4000K | 90 | 24° | White(RAL9003) | Gold |
| 175AW94036GO00 | 640lm | 4000K | 90 | 36° | White(RAL9003) | Gold |
| 175AW94055GO00 | 640lm | 4000K | 90 | 55° | White(RAL9003) | Gold |
| 175AB94024GO00 | 640lm | 4000K | 90 | 24° | Black(RAL9005) | Gold |
| 175AB94036GO00 | 640lm | 4000K | 90 | 36° | Black(RAL9005) | Gold |
| 175AB94055GO00 | 640lm | 4000K | 90 | 55° | Black(RAL9005) | Gold |
| 175AW92724CO00 | 620lm | 2700K | 90 | 24° | White(RAL9003) | Gold |
| 175AW92736CO00 | 620lm | 2700K | 90 | 36° | White(RAL9003) | Copper |
| 175AW92755CO00 | 620lm | 2700K | 90 | 55° | White(RAL9003) | Copper |
| 175AB92724CO00 | 620lm | 2700K | 90 | 24° | Black(RAL9005) | Copper |
| 175AB92736CO00 | 620lm | 2700K | 90 | 36° | Black(RAL9005) | Copper |
| 175AB92755CO00 | 620lm | 2700K | 90 | 55° | Black(RAL9005) | Copper |
| 175AW93024CO00 | 630lm | 3000K | 90 | 24° | White(RAL9003) | Copper |
| 175AW93036CO00 | 630lm | 3000K | 90 | 36° | White(RAL9003) | Copper |
| 175AW93055CO00 | 630lm | 3000K | 90 | 55° | White(RAL9003) | Copper |
| 175AB93024CO00 | 630lm | 3000K | 90 | 24° | Black(RAL9005) | Copper |
| 175AB93036CO00 | 630lm | 3000K | 90 | 36° | Black(RAL9005) | Copper |
| 175AB93055CO00 | 630lm | 3000K | 90 | 55° | Black(RAL9005) | Copper |
| 175AW94024CO00 | 640lm | 4000K | 90 | 24° | White(RAL9003) | Copper |
| 175AW94036CO00 | 640lm | 4000K | 90 | 36° | White(RAL9003) | Copper |
| 175AW94055CO00 | 640lm | 4000K | 90 | 55° | White(RAL9003) | Copper |
| 175AB94024CO00 | 640lm | 4000K | 90 | 24° | Black(RAL9005) | Copper |
| 175AB94036CO00 | 640lm | 4000K | 90 | 36° | Black(RAL9005) | Copper |
| 175AB94055CO00 | 640lm | 4000K | 90 | 55° | Black(RAL9005) | Copper |
| 175AW183034WH00 | 300lm | 1800K - 3000K | 90 | 34° | White(RAL9003) | White |
| 175AW183034BM00 | 300lm | 1800K - 3000K | 90 | 34° | White(RAL9003) | Black Matt |
| 175AW183034CO00 | 300lm | 1800K - 3000K | 90 | 34° | White(RAL9003) | Copper |
| 175AW183034SG00 | 300lm | 1800K - 3000K | 90 | 34° | White(RAL9003) | Silver High Gloss |
| 175AW183034CH00 | 300lm | 1800K - 3000K | 90 | 34° | White(RAL9003) | Chrome |
| 175AW183034GO00 | 300lm | 1800K - 3000K | 90 | 34° | White(RAL9003) | Gold |
| 175ABW183034BG00 | 300lm | 1800K - 3000K | 90 | 34° | White(RAL9003) | Black High Gloss |
| 175AB183034WH00 | 300lm | 1800K - 3000K | 90 | 34° | Black(RAL9005) | White |
| 175AB183034BM00 | 300lm | 1800K - 3000K | 90 | 34° | Black(RAL9005) | Black Matt |
| 175AB183034CO00 | 300lm | 1800K - 3000K | 90 | 34° | Black(RAL9005) | Copper |
| 175AB183034SG00 | 300lm | 1800K - 3000K | 90 | 34° | Black(RAL9005) | Silver High Gloss |
| 175AB183034CH00 | 300lm | 1800K - 3000K | 90 | 34° | Black(RAL9005) | Chrome |
| 175AB183034GO00 | 300lm | 1800K - 3000K | 90 | 34° | Black(RAL9005) | Gold |
| 175ABB183034BG00 | 300lm | 1800K - 3000K | 90 | 34° | Black(RAL9005) | Black High Gloss |
Click on specification values for related products.
Housing MaterialAluminum Die Cast
Housing ColourBlack(RAL9005), White(RAL9003)

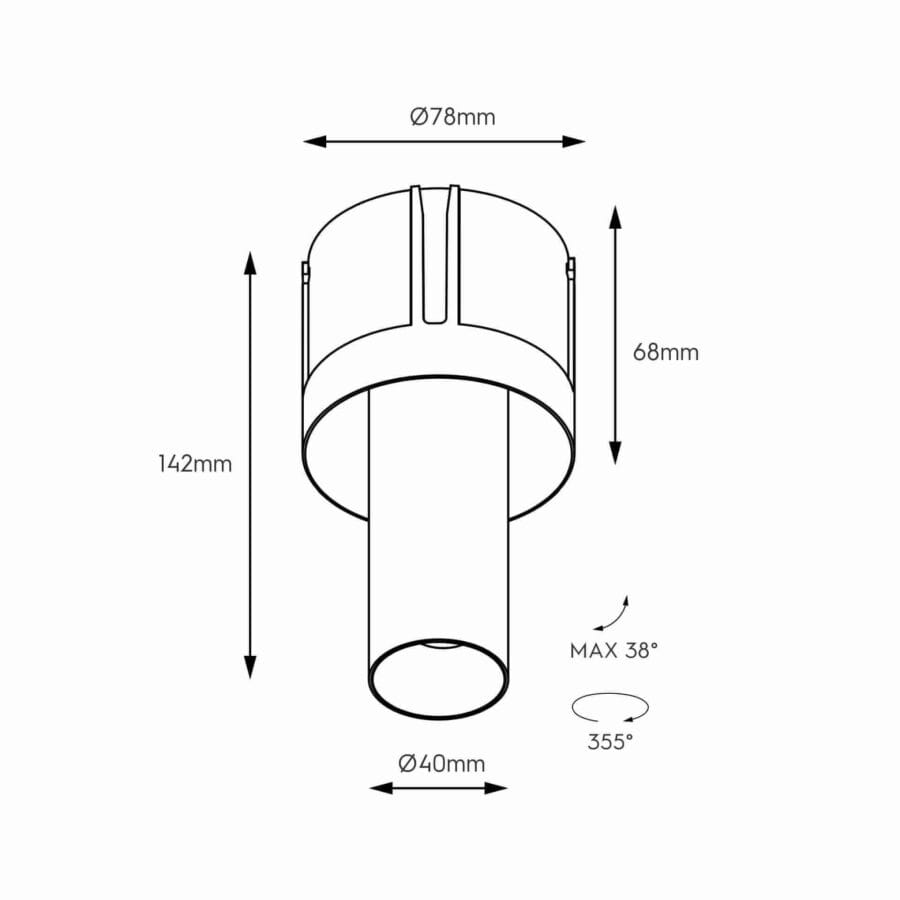

Luminaire Dimension [mm]Ø78x142mm
Cut-Out [mm]Based on selected frame
OpticReflector
Reflector ColourBlack High Gloss, Chrome, Copper, Gold, Silver High Gloss, White, Black Matt
CCT [K]1800K – 3000K, 2700K, 3000K, 4000K
CRI [Ra]90
Chromaticity Tolerance3 MacAdam
Mains Voltage [VAc]N/A
Power SupplySeparate Available
Ambient Temperature [degC]35°C
Ingress ProtectionIP43/IP20
Light Source Energy ClassF
Light Source IdentifierBXRV-DR-1830G-0600-A-23, BXRH-27G1000-B-83, BXRH-30G1000-B-83, BXRH-40G1000-B-83
Lifetime/Failure Rate [h]50000h
Electrical Safety ClassClass II
Net Weight [Kg]0.22Kg
Certificates/DeclarationsCE/UKCA
Warranty [Y]5Y
CollectionDea Della Luce
Built-in Height [mm]100mm

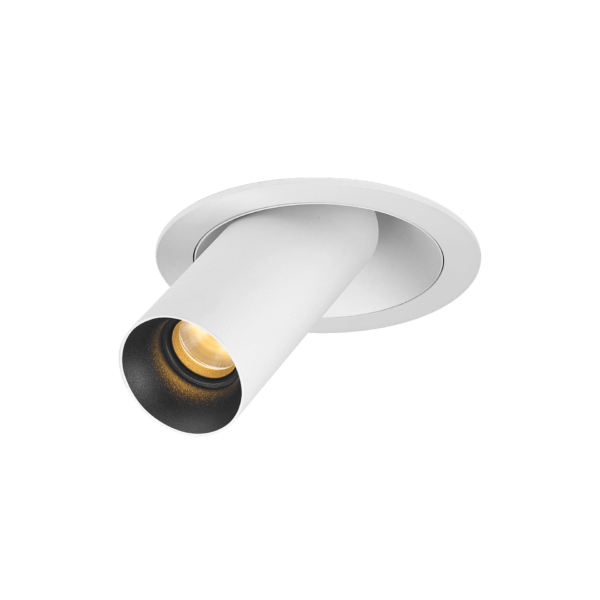

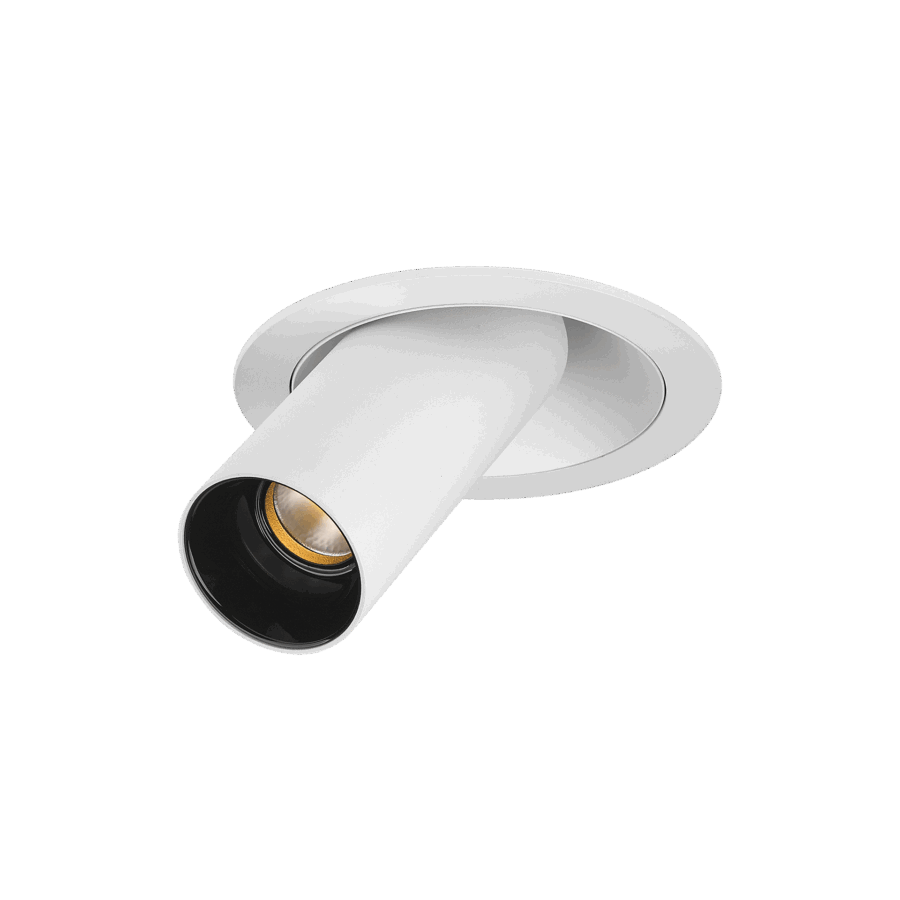

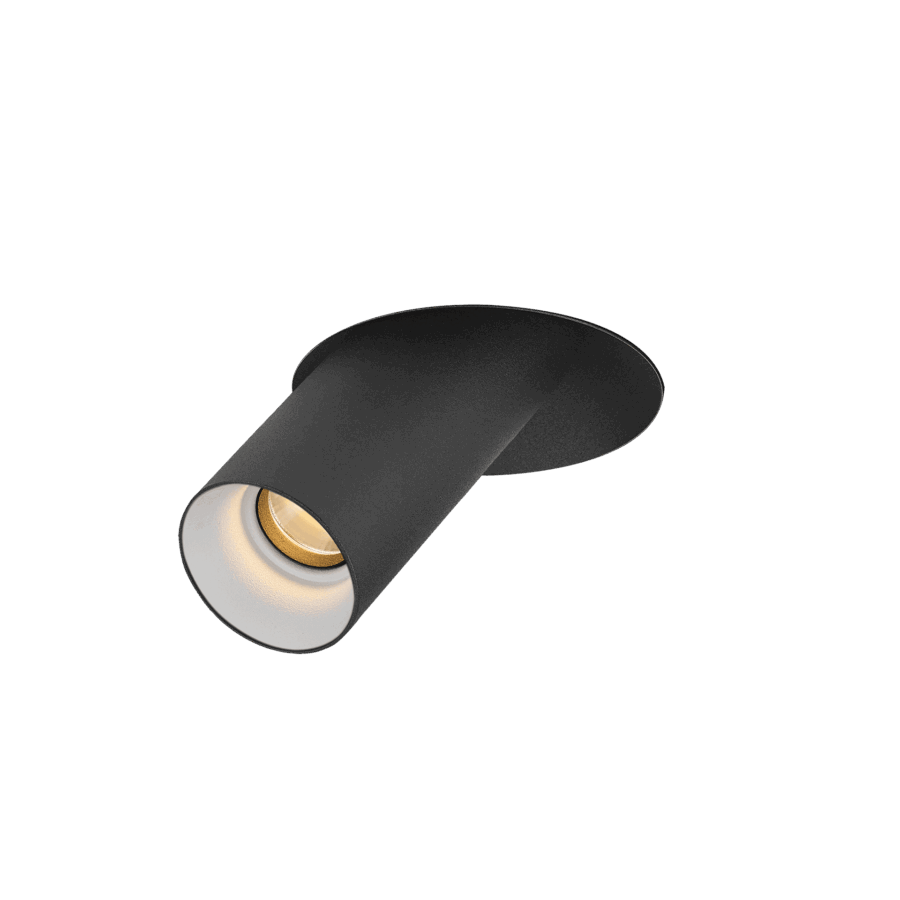

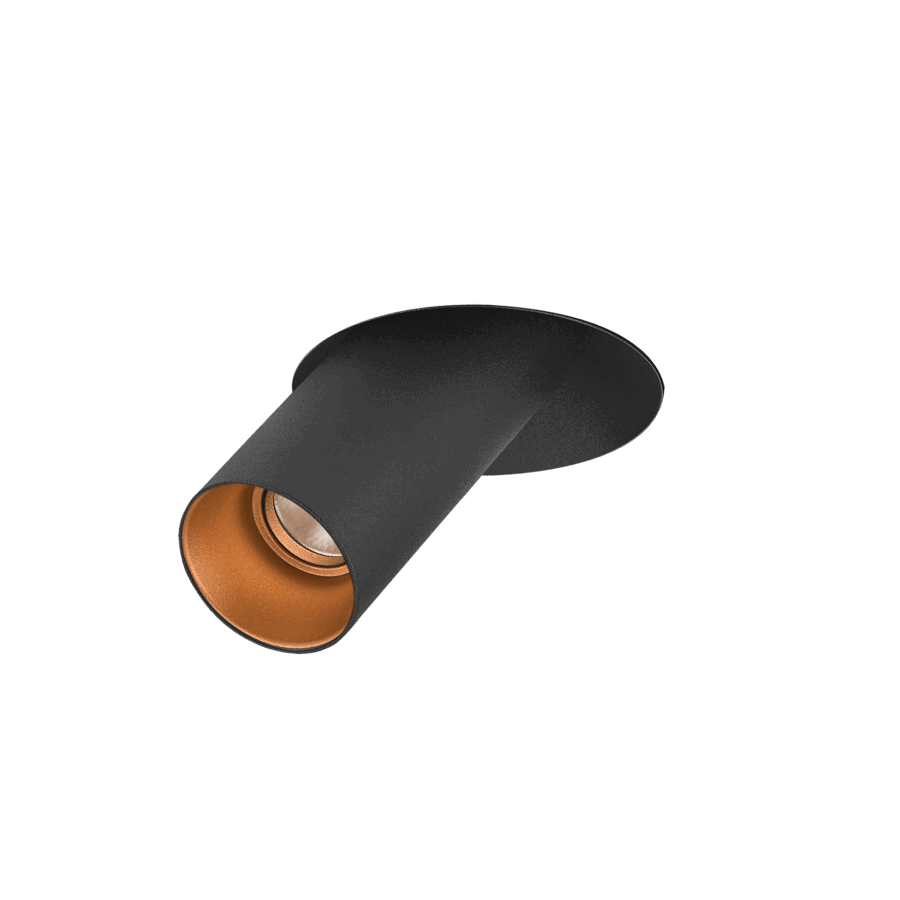

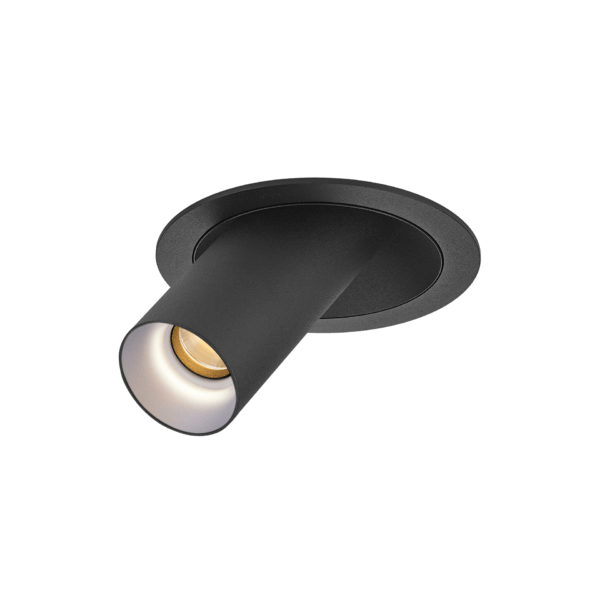

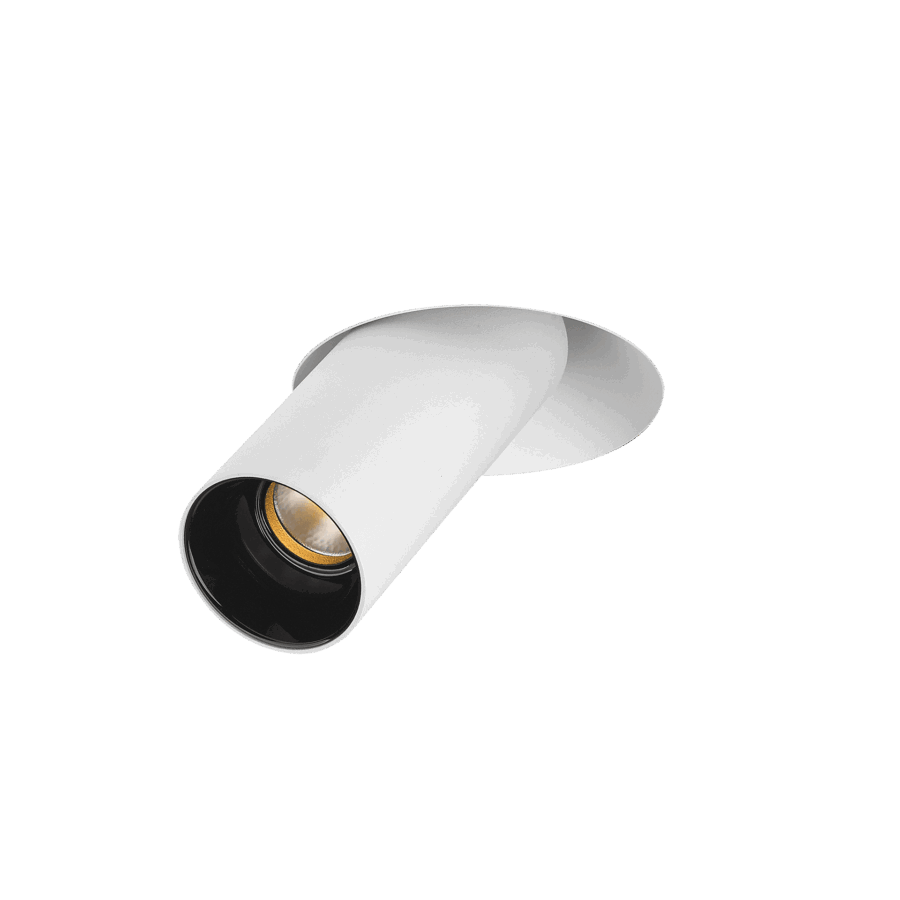

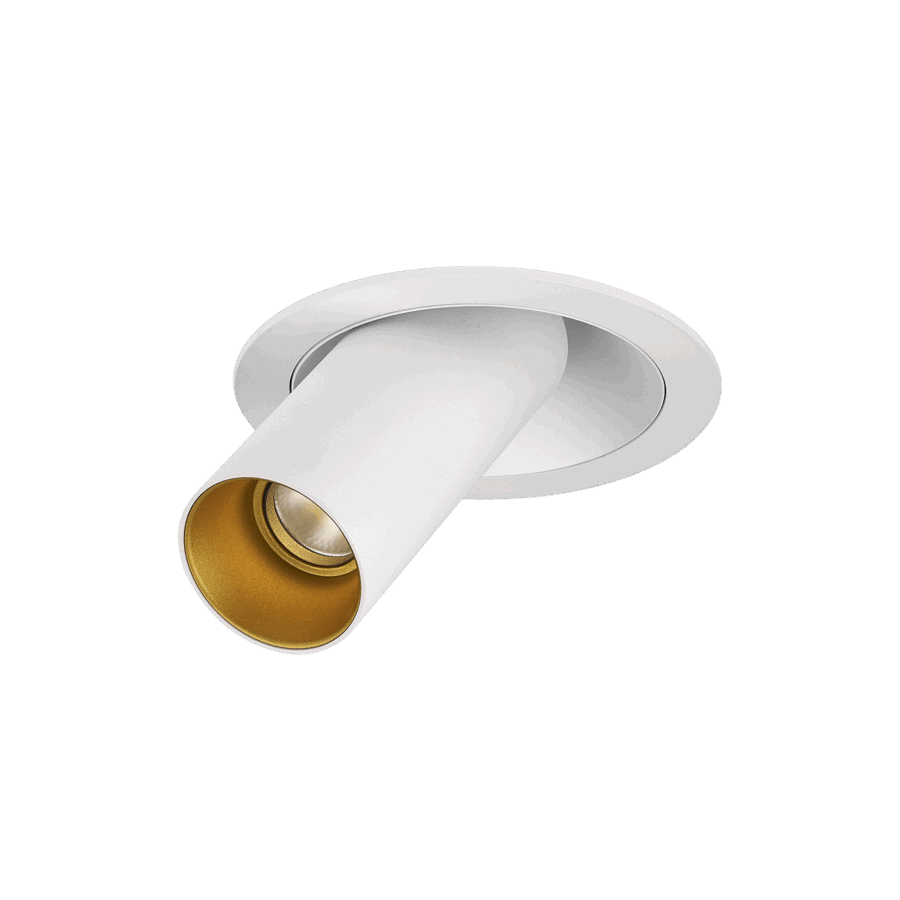

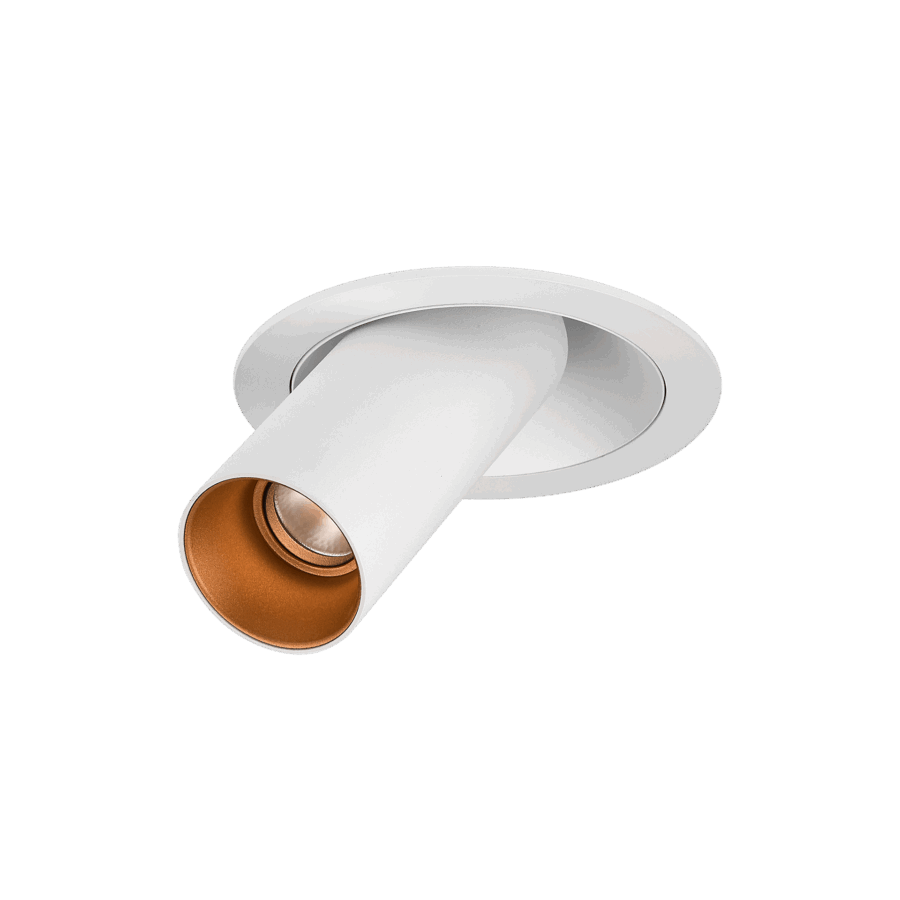

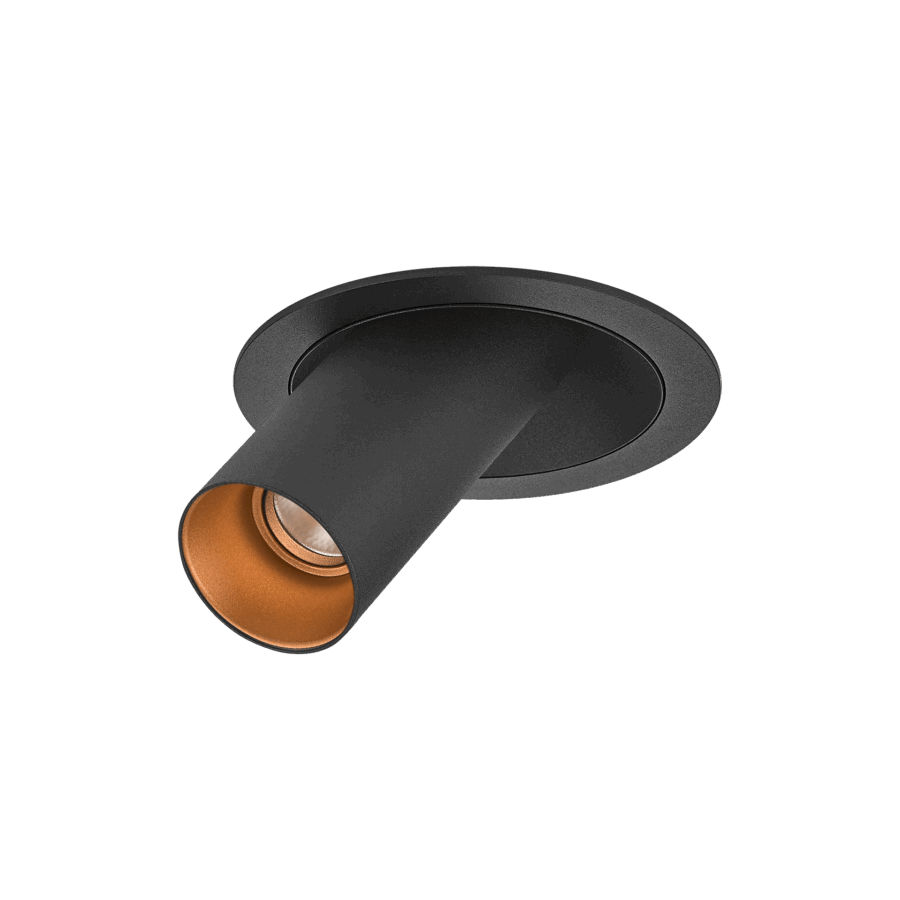

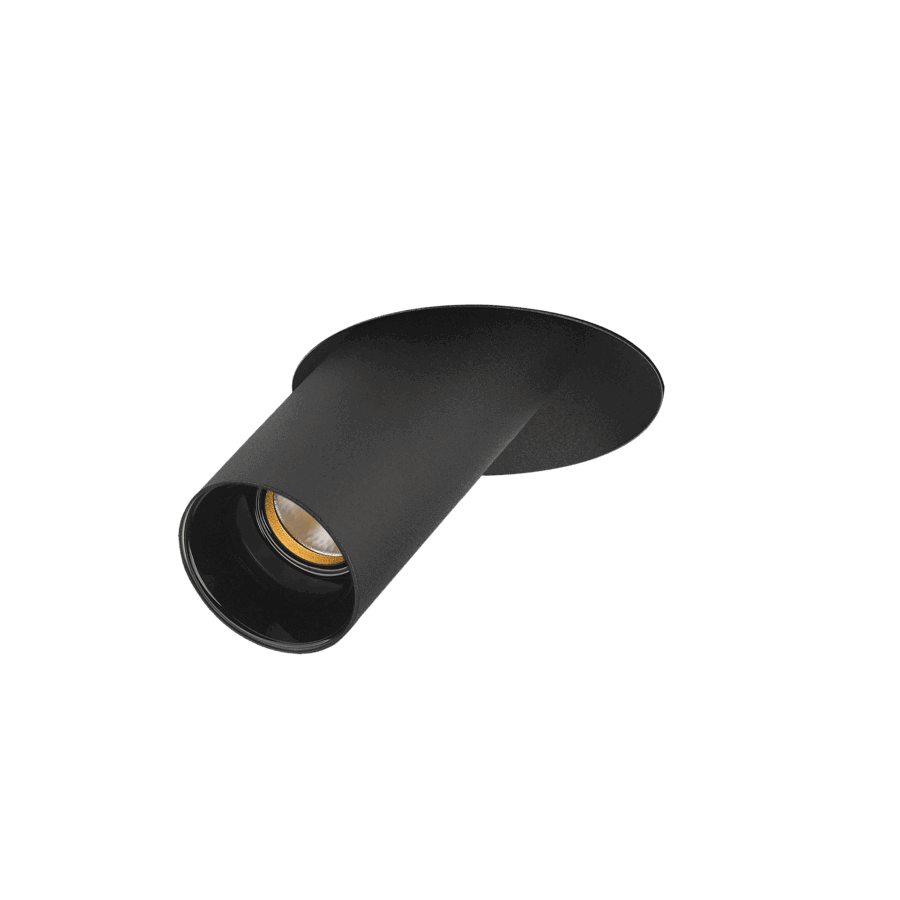

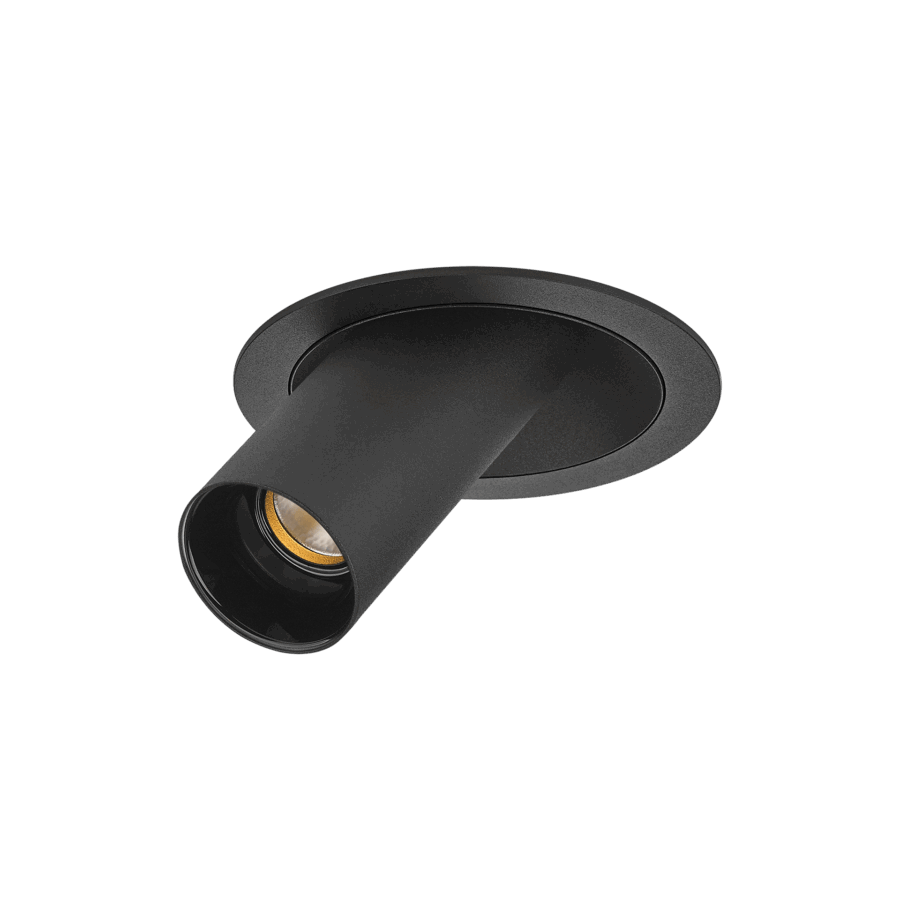

The Karizma Luce Dea Durga M is a recessed adjustable downlight from the Dea Della Luce series. Compatible with the Dea Athena modular system. Made from aluminium. Available luminaire flux: in range 620 – 640 lm. CCT: 2700K, 3000K, 4000K. Beam angles: 24° | 36° | 55°. Luminaire available in black and white. The reflectors can be changed in case of wish or need, because they are fixed by a magnet. Available reflector colours: Silver High Gloss, Black High Gloss, Chrome, White, Gold, Copper, Black Matt.
