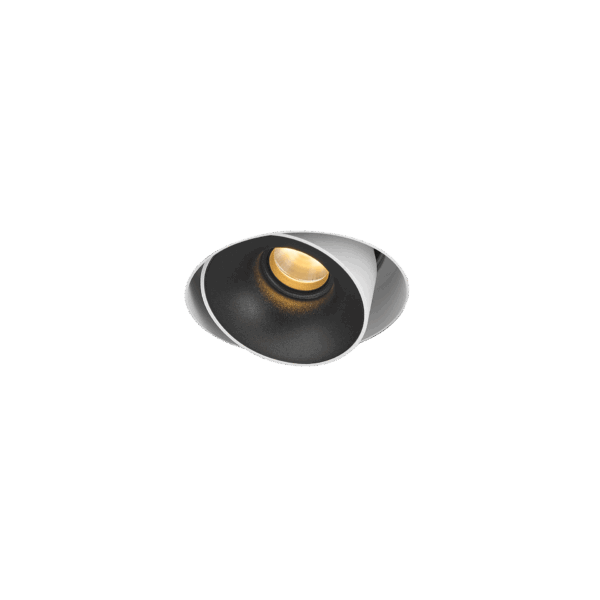

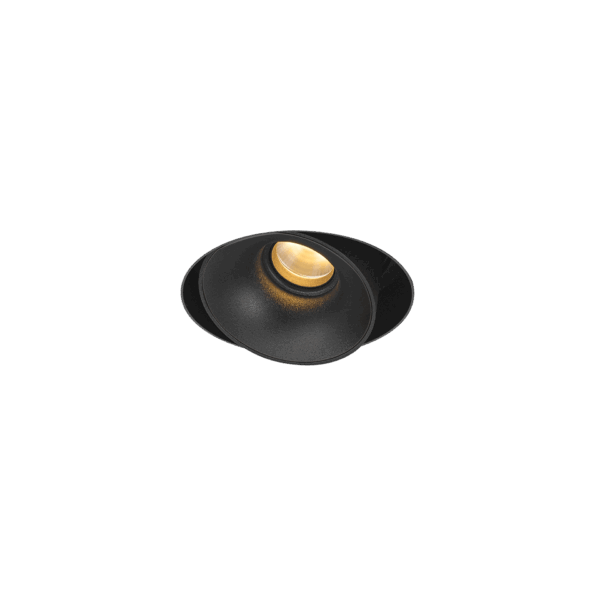

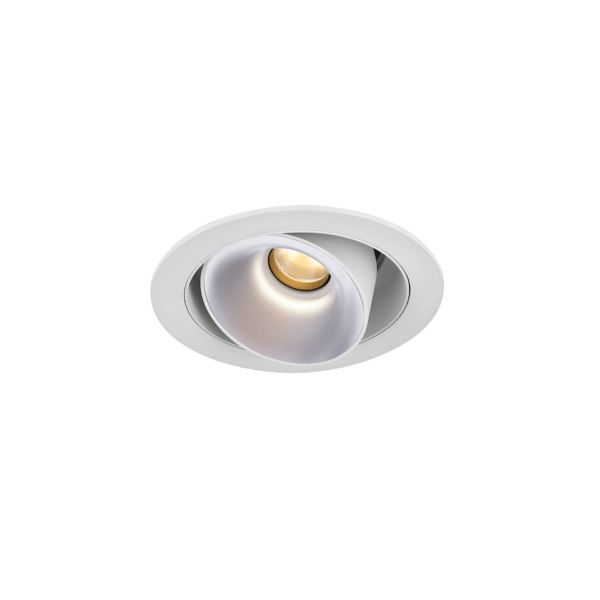

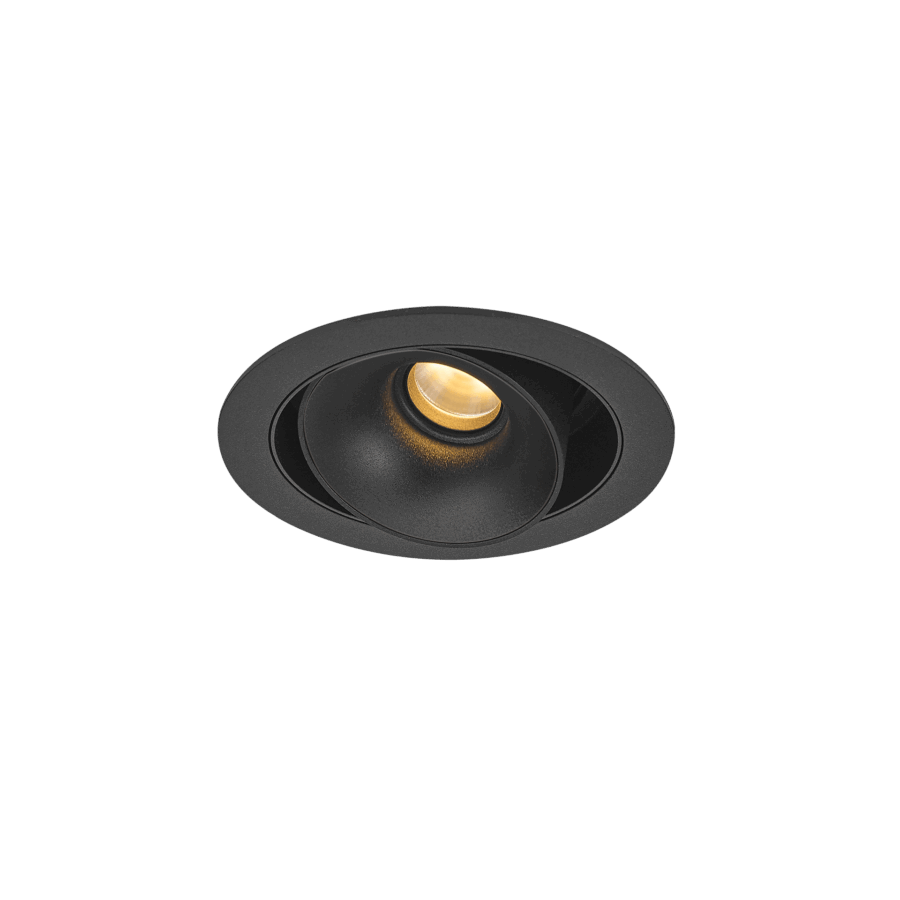

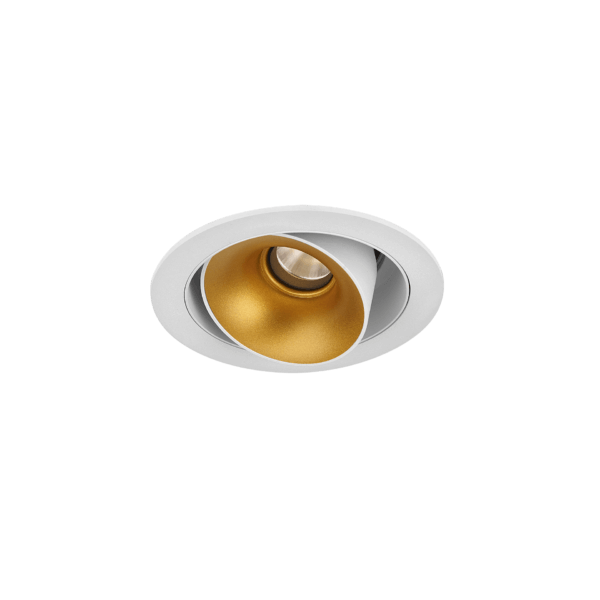

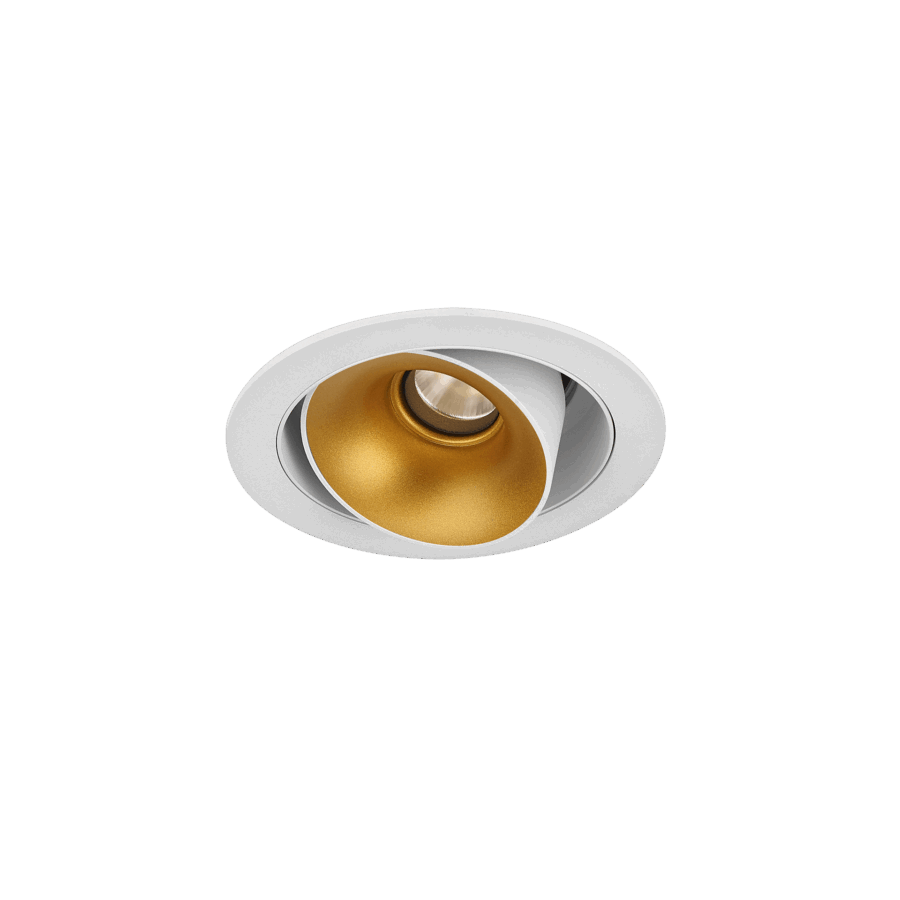

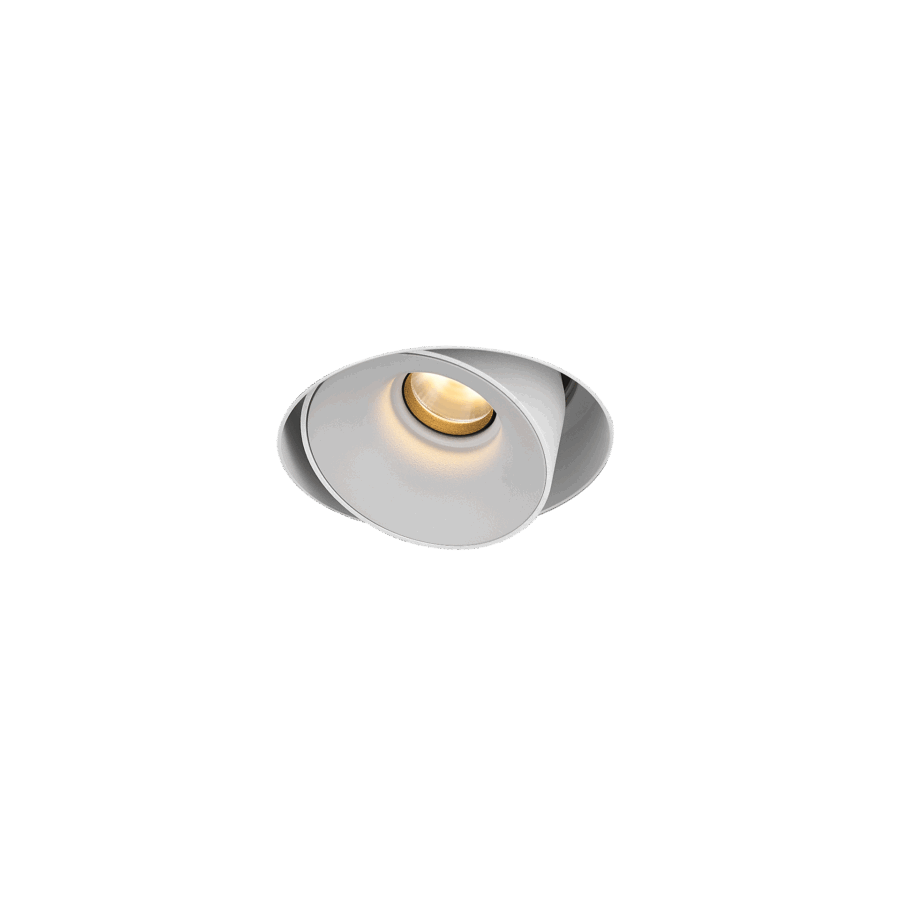

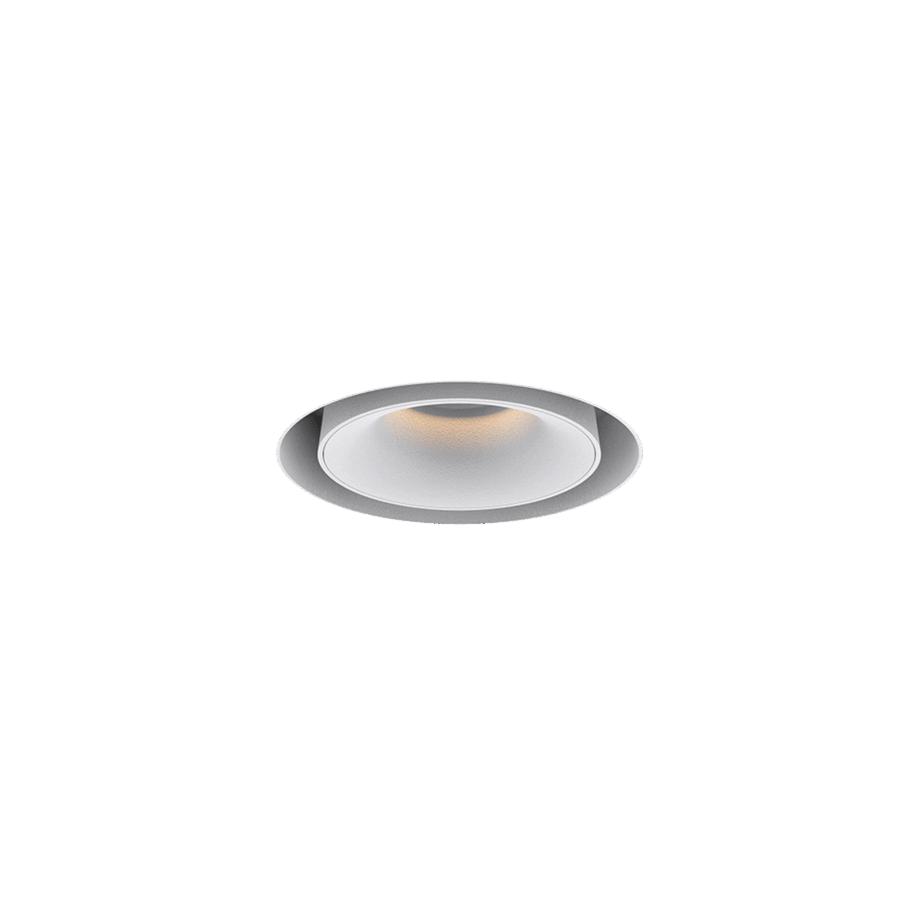

Why not add a feminine touch to your room? Compatible with our Dea Athena modular system, this fixture is named after the goddess Devi, known for her divine character. The elegant round design, subtly concealed in the ceiling, brings a sparkle to any space. Choose a black or white housing, a trim or trimless version, and simply add a reflector in the colour of your choice.
Dea Devi M
Let’s add a sparkle.
- Warranty on quality in years.
- Ingress Protection, indicates the degree to which lighting fixtures are protected against dust and waterspray.
- Wireless lighting control based on Bluetooth.
- Digital dimming interface.
- Phase dimming systems dim the lights by changing the supply voltage.
- Dim to a warmer color from 3000K to 1800K for creating the right atmosphere.
- Replaceable (LED only) light source by a professional.
- Replaceable control gear by a professional.
Datasheets
| SKU | Luminous Flux [lm] | CCT [K] | CRI [Ra] | Beam Angle [deg] | Housing Colour | Reflector Colour |
|---|---|---|---|---|---|---|
| 174AW92724BM00 | 900lm | 2700K | 90 | 24° | White(RAL9003) | Black Matt |
| 174AW92736BM00 | 900lm | 2700K | 90 | 36° | White(RAL9003) | Black Matt |
| 174AB92724BM00 | 900lm | 2700K | 90 | 24° | Black(RAL9005) | Black Matt |
| 174AB92736BM00 | 900lm | 2700K | 90 | 36° | Black(RAL9005) | Black Matt |
| 174AW93024BM00 | 950lm | 3000K | 90 | 24° | White(RAL9003) | Black Matt |
| 174AW93036BM00 | 950lm | 3000K | 90 | 36° | White(RAL9003) | Black Matt |
| 174AB93024BM00 | 950lm | 3000K | 90 | 24° | Black(RAL9005) | Black Matt |
| 174AB93036BM00 | 950lm | 3000K | 90 | 36° | Black(RAL9005) | Black Matt |
| 174AW94024BM00 | 960lm | 4000K | 90 | 24° | White(RAL9003) | Black Matt |
| 174AW94036BM00 | 960lm | 4000K | 90 | 36° | White(RAL9003) | Black Matt |
| 174AB94024BM00 | 960lm | 4000K | 90 | 24° | Black(RAL9005) | Black Matt |
| 174AB94036BM00 | 960lm | 4000K | 90 | 36° | Black(RAL9005) | Black Matt |
| 174AW92724BG00 | 900lm | 2700K | 90 | 24° | White(RAL9003) | Black High Gloss |
| 174AW92736BG00 | 900lm | 2700K | 90 | 36° | White(RAL9003) | Black High Gloss |
| 174AB92724BG00 | 900lm | 2700K | 90 | 24° | Black(RAL9005) | Black High Gloss |
| 174AB92736BG00 | 900lm | 2700K | 90 | 36° | Black(RAL9005) | Black High Gloss |
| 174AW93024BG00 | 950lm | 3000K | 90 | 24° | White(RAL9003) | Black High Gloss |
| 174AW93036BG00 | 950lm | 3000K | 90 | 36° | White(RAL9003) | Black High Gloss |
| 174AB93024BG00 | 950lm | 3000K | 90 | 24° | Black(RAL9005) | Black High Gloss |
| 174AB93036BG00 | 950lm | 3000K | 90 | 36° | Black(RAL9005) | Black High Gloss |
| 174AW94024BG00 | 960lm | 4000K | 90 | 24° | White(RAL9003) | Black High Gloss |
| 174AW94036BG00 | 960lm | 4000K | 90 | 36° | White(RAL9003) | Black High Gloss |
| 174AB94024BG00 | 960lm | 4000K | 90 | 24° | Black(RAL9005) | Black High Gloss |
| 174AB94036BG00 | 960lm | 4000K | 90 | 36° | Black(RAL9005) | Black High Gloss |
| 174AW92724WH00 | 900lm | 2700K | 90 | 24° | White(RAL9003) | White |
| 174AW92736WH00 | 900lm | 2700K | 90 | 36° | White(RAL9003) | White |
| 174AB92724WH00 | 900lm | 2700K | 90 | 24° | Black(RAL9005) | White |
| 174AB92736WH00 | 900lm | 2700K | 90 | 36° | Black(RAL9005) | White |
| 174AW93024WH00 | 950lm | 3000K | 90 | 24° | White(RAL9003) | White |
| 174AW93036WH00 | 950lm | 3000K | 90 | 36° | White(RAL9003) | White |
| 174AB93024WH00 | 950lm | 3000K | 90 | 24° | Black(RAL9005) | White |
| 174AB93036WH00 | 950lm | 3000K | 90 | 36° | Black(RAL9005) | White |
| 174AW94024WH00 | 960lm | 4000K | 90 | 24° | White(RAL9003) | White |
| 174AW94036WH00 | 960lm | 4000K | 90 | 36° | White(RAL9003) | White |
| 174AB94024WH00 | 960lm | 4000K | 90 | 24° | Black(RAL9005) | White |
| 174AB94036WH00 | 960lm | 4000K | 90 | 36° | Black(RAL9005) | White |
| 174AW92724CH00 | 900lm | 2700K | 90 | 24° | White(RAL9003) | Chrome |
| 174AW92736CH00 | 900lm | 2700K | 90 | 36° | White(RAL9003) | Chrome |
| 174AB92724CH00 | 900lm | 2700K | 90 | 24° | Black(RAL9005) | Chrome |
| 174AB92736CH00 | 900lm | 2700K | 90 | 36° | Black(RAL9005) | Chrome |
| 174AW93024CH00 | 950lm | 3000K | 90 | 24° | White(RAL9003) | Chrome |
| 174AW93036CH00 | 950lm | 3000K | 90 | 36° | White(RAL9003) | Chrome |
| 174AB93024CH00 | 950lm | 3000K | 90 | 24° | Black(RAL9005) | Chrome |
| 174AB93036CH00 | 950lm | 3000K | 90 | 36° | Black(RAL9005) | Chrome |
| 174AW94024CH00 | 960lm | 4000K | 90 | 24° | White(RAL9003) | Chrome |
| 174AW94036CH00 | 960lm | 4000K | 90 | 36° | White(RAL9003) | Chrome |
| 174AB94024CH00 | 960lm | 4000K | 90 | 24° | Black(RAL9005) | Chrome |
| 174AB94036CH00 | 960lm | 4000K | 90 | 36° | Black(RAL9005) | Chrome |
| 174AW92724SG00 | 900lm | 2700K | 90 | 24° | White(RAL9003) | Chrome |
| 174AW92736SG00 | 900lm | 2700K | 90 | 36° | White(RAL9003) | Chrome |
| 174AB92724SG00 | 900lm | 2700K | 90 | 24° | Black(RAL9005) | Silver High Gloss |
| 174AB92736SG00 | 900lm | 2700K | 90 | 36° | Black(RAL9005) | Silver High Gloss |
| 174AW93024SG00 | 950lm | 3000K | 90 | 24° | White(RAL9003) | Silver High Gloss |
| 174AW93036SG00 | 950lm | 3000K | 90 | 36° | White(RAL9003) | Silver High Gloss |
| 174AB93024SG00 | 950lm | 3000K | 90 | 24° | Black(RAL9005) | Silver High Gloss |
| 174AB93036SG00 | 950lm | 3000K | 90 | 36° | Black(RAL9005) | Silver High Gloss |
| 174AW94024SG00 | 960lm | 4000K | 90 | 24° | White(RAL9003) | Silver High Gloss |
| 174AW94036SG00 | 960lm | 4000K | 90 | 36° | White(RAL9003) | Silver High Gloss |
| 174AB94024SG00 | 960lm | 4000K | 90 | 24° | Black(RAL9005) | Silver High Gloss |
| 174AB94036SG00 | 960lm | 4000K | 90 | 36° | Black(RAL9005) | Silver High Gloss |
| 174AW92724GO00 | 900lm | 2700K | 90 | 24° | White(RAL9003) | Gold |
| 174AW92736GO00 | 900lm | 2700K | 90 | 36° | White(RAL9003) | Gold |
| 174AB92724GO00 | 900lm | 2700K | 90 | 24° | Black(RAL9005) | Gold |
| 174AB92736GO00 | 900lm | 2700K | 90 | 36° | Black(RAL9005) | Gold |
| 174AW93024GO00 | 950lm | 3000K | 90 | 24° | White(RAL9003) | Gold |
| 174AW93036GO00 | 950lm | 3000K | 90 | 36° | White(RAL9003) | Gold |
| 174AB93024GO00 | 950lm | 3000K | 90 | 24° | Black(RAL9005) | Gold |
| 174AB93036GO00 | 950lm | 3000K | 90 | 36° | Black(RAL9005) | Gold |
| 174AW94024GO00 | 960lm | 4000K | 90 | 24° | White(RAL9003) | Gold |
| 174AW94036GO00 | 960lm | 4000K | 90 | 36° | White(RAL9003) | Gold |
| 174AB94024GO00 | 960lm | 4000K | 90 | 24° | Black(RAL9005) | Gold |
| 174AB94036GO00 | 960lm | 4000K | 90 | 36° | Black(RAL9005) | Gold |
| 174AW92724CO00 | 900lm | 2700K | 90 | 24° | White(RAL9003) | Copper |
| 174AW92736CO00 | 900lm | 2700K | 90 | 36° | White(RAL9003) | Copper |
| 174AB92724CO00 | 900lm | 2700K | 90 | 24° | Black(RAL9005) | Copper |
| 174AB92736CO00 | 900lm | 2700K | 90 | 36° | Black(RAL9005) | Copper |
| 174AW93024CO00 | 950lm | 3000K | 90 | 24° | White(RAL9003) | Copper |
| 174AW93036CO00 | 950lm | 3000K | 90 | 36° | White(RAL9003) | Copper |
| 174AB93024CO00 | 950lm | 3000K | 90 | 24° | Black(RAL9005) | Copper |
| 174AB93036CO00 | 950lm | 3000K | 90 | 36° | Black(RAL9005) | Copper |
| 174AW94024CO00 | 960lm | 4000K | 90 | 24° | White(RAL9003) | Copper |
| 174AW94036CO00 | 960lm | 4000K | 90 | 36° | White(RAL9003) | Copper |
| 174AB94024CO00 | 960lm | 4000K | 90 | 24° | Black(RAL9005) | Copper |
| 174AB94036CO00 | 960lm | 4000K | 90 | 36° | Black(RAL9005) | Copper |
| 174CW183036WH00 | 570lm | 1800K - 3000K | 90 | 36° | White(RAL9003) | White |
| 174CW183036BG00 | 570lm | 1800K - 3000K | 90 | 36° | White(RAL9003) | Black High Gloss |
| 174CW183036BM00 | 570lm | 1800K - 3000K | 90 | 36° | White(RAL9003) | Black Matt |
| 174CW183036GO00 | 570lm | 1800K - 3000K | 90 | 36° | White(RAL9003) | Gold |
| 174CW183036CH00 | 570lm | 1800K - 3000K | 90 | 36° | White(RAL9003) | Chrome |
| 174CW183036SG00 | 570lm | 1800K - 3000K | 90 | 36° | White(RAL9003) | Silver High Gloss |
| 174CW183036CO00 | 570lm | 1800K - 3000K | 90 | 36° | White(RAL9003) | Copper |
| 174CB183036WH00 | 570lm | 1800K - 3000K | 90 | 36° | Black(RAL9005) | White |
| 174CB183036BG00 | 570lm | 1800K - 3000K | 90 | 36° | Black(RAL9005) | Black High Gloss |
| 174CB183036BM00 | 570lm | 1800K - 3000K | 90 | 36° | Black(RAL9005) | Black Matt |
| 174CB183036GO00 | 570lm | 1800K - 3000K | 90 | 36° | Black(RAL9005) | Gold |
| 174CB183036CH00 | 570lm | 1800K - 3000K | 90 | 36° | Black(RAL9005) | Chrome |
| 174CB183036SG00 | 570lm | 1800K - 3000K | 90 | 36° | Black(RAL9005) | Silver High Gloss |
| 174CB183036CO00 | 570lm | 1800K - 3000K | 90 | 36° | Black(RAL9005) | Copper |
Click on specification values for related products.
Housing MaterialAluminum Die Cast
Housing ColourBlack(RAL9005), White(RAL9003)

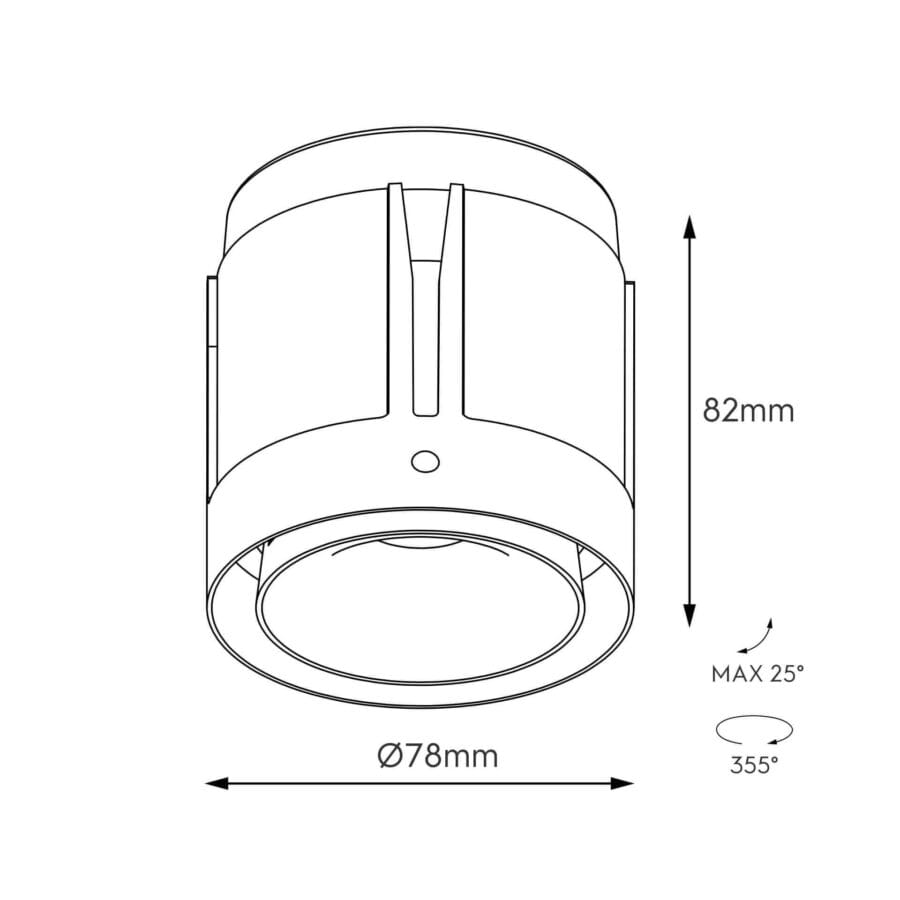

Luminaire Dimension [mm]Ø78x82mm
Cut-Out [mm]Based on selected frame
OpticReflector
Reflector ColourBlack High Gloss, Chrome, Copper, Gold, Silver High Gloss, White, Black Matt
CCT [K]1800K – 3000K, 2700K, 3000K, 4000K
CRI [Ra]90
Chromaticity Tolerance3 MacAdam
Mains Voltage [VAc]N/A
Power SupplySeparate Available
Ambient Temperature [degC]35°C
Ingress ProtectionIP43/IP20
Light Source Energy ClassF
Light Source IdentifierBXRE-27G1000-A-83, BXRE-30G1000-A-83, BXRE-40G1000-A-83, BXRH-27G1000-B-83, BXRH-30G1000-B-83, BXRH-40G1000-B-83
Lifetime/Failure Rate [h]50000h
Electrical Safety ClassClass II
Net Weight [Kg]0.22Kg
Certificates/DeclarationsCE/UKCA
Warranty [Y]5Y
CollectionDea Della Luce
Built-in Height [mm]110mm

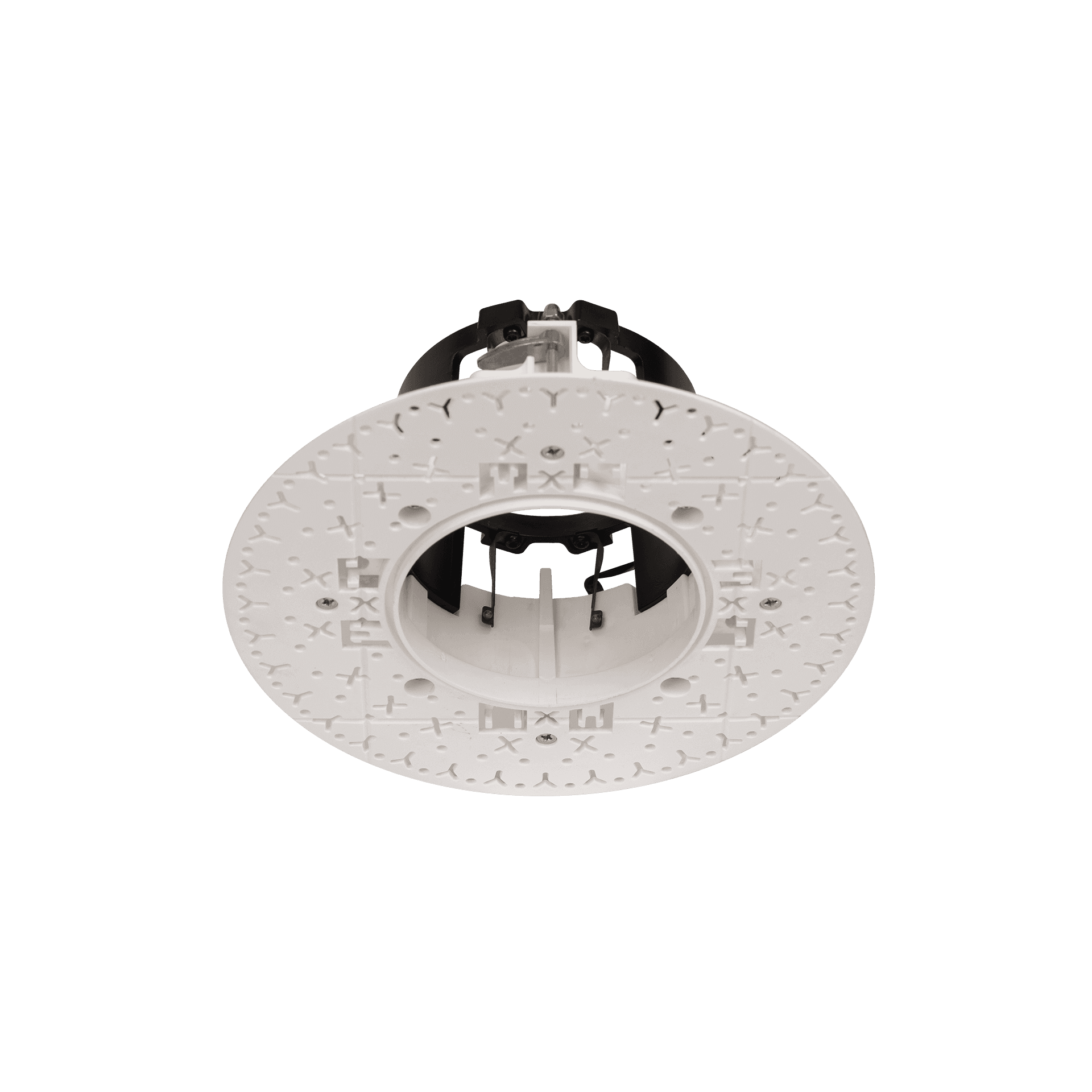

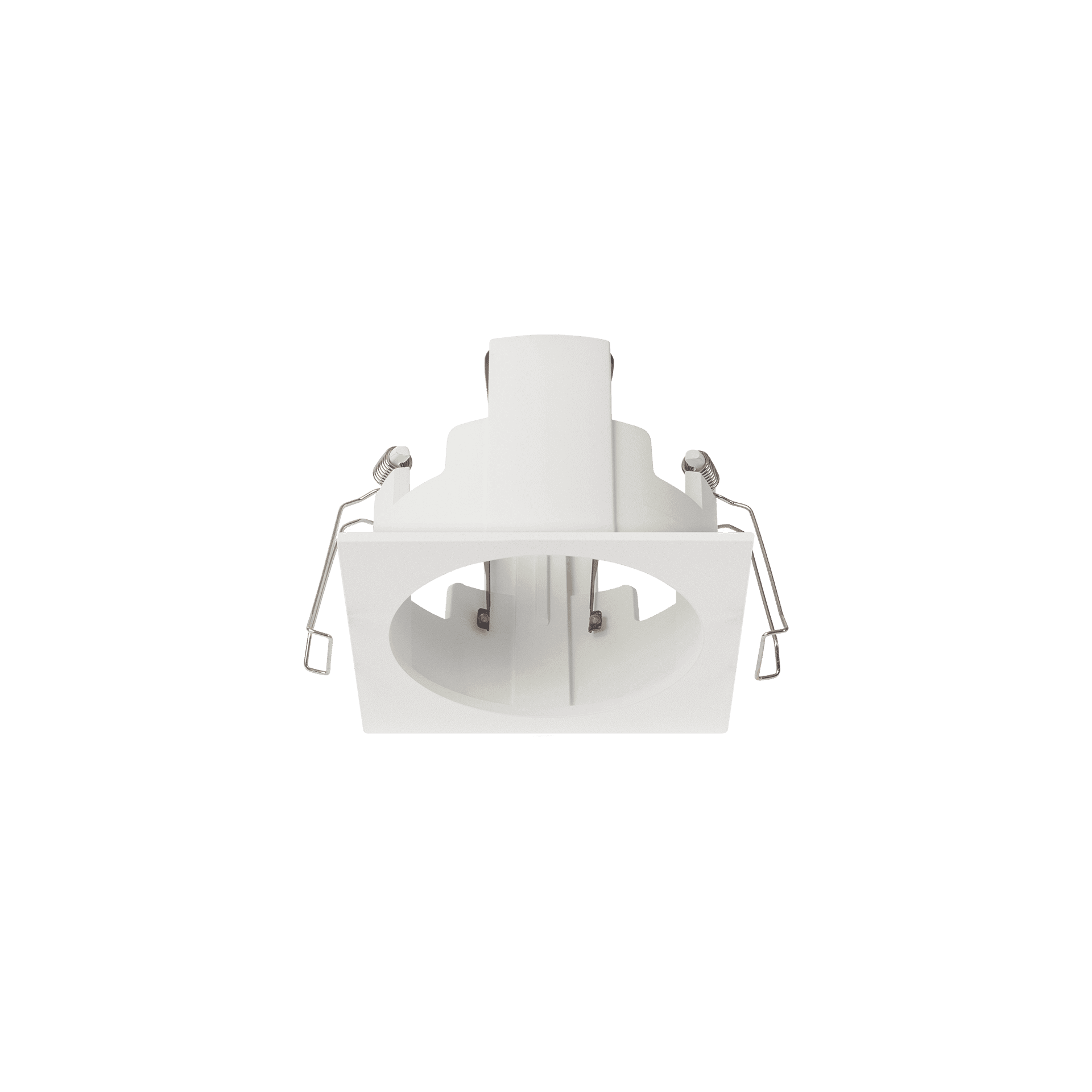

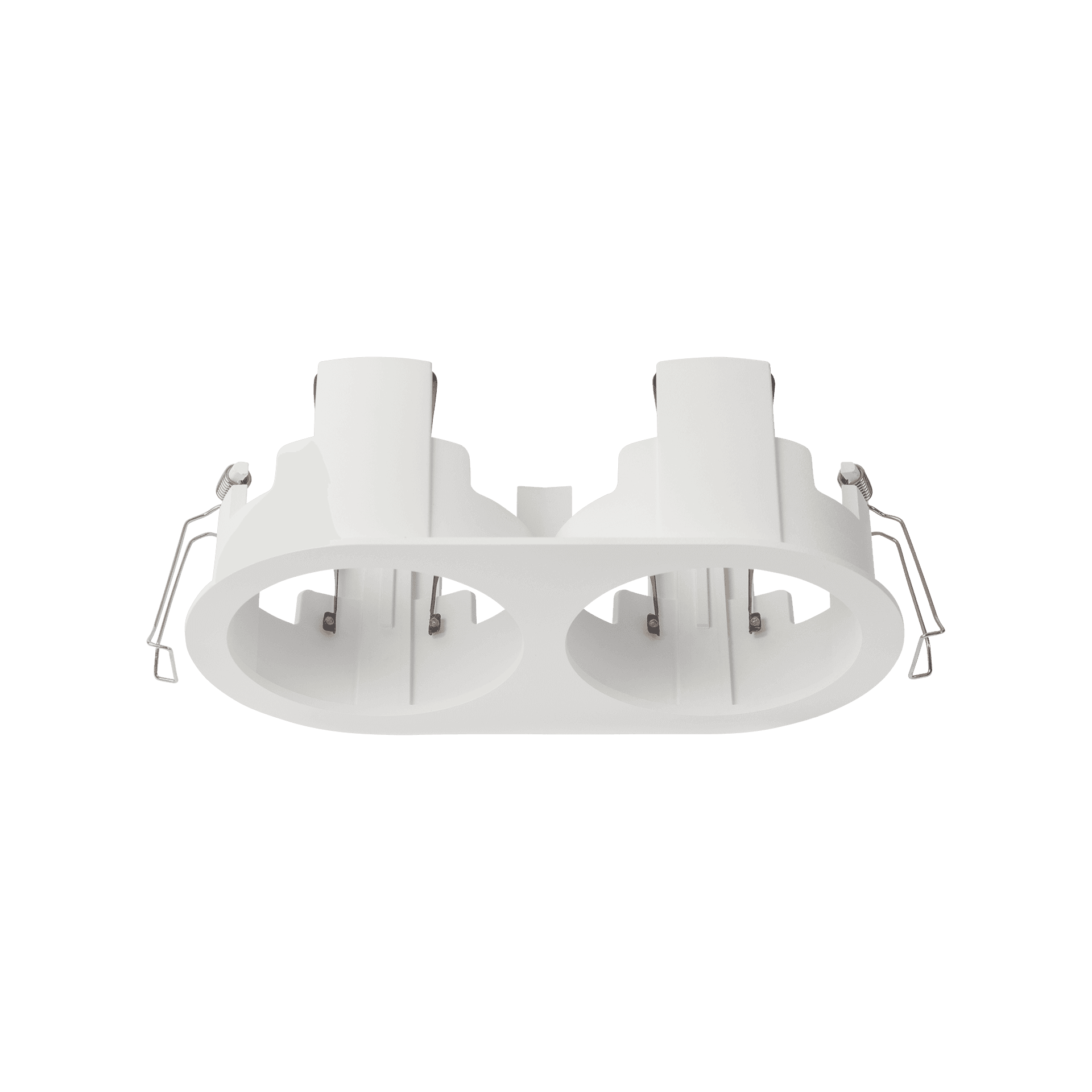

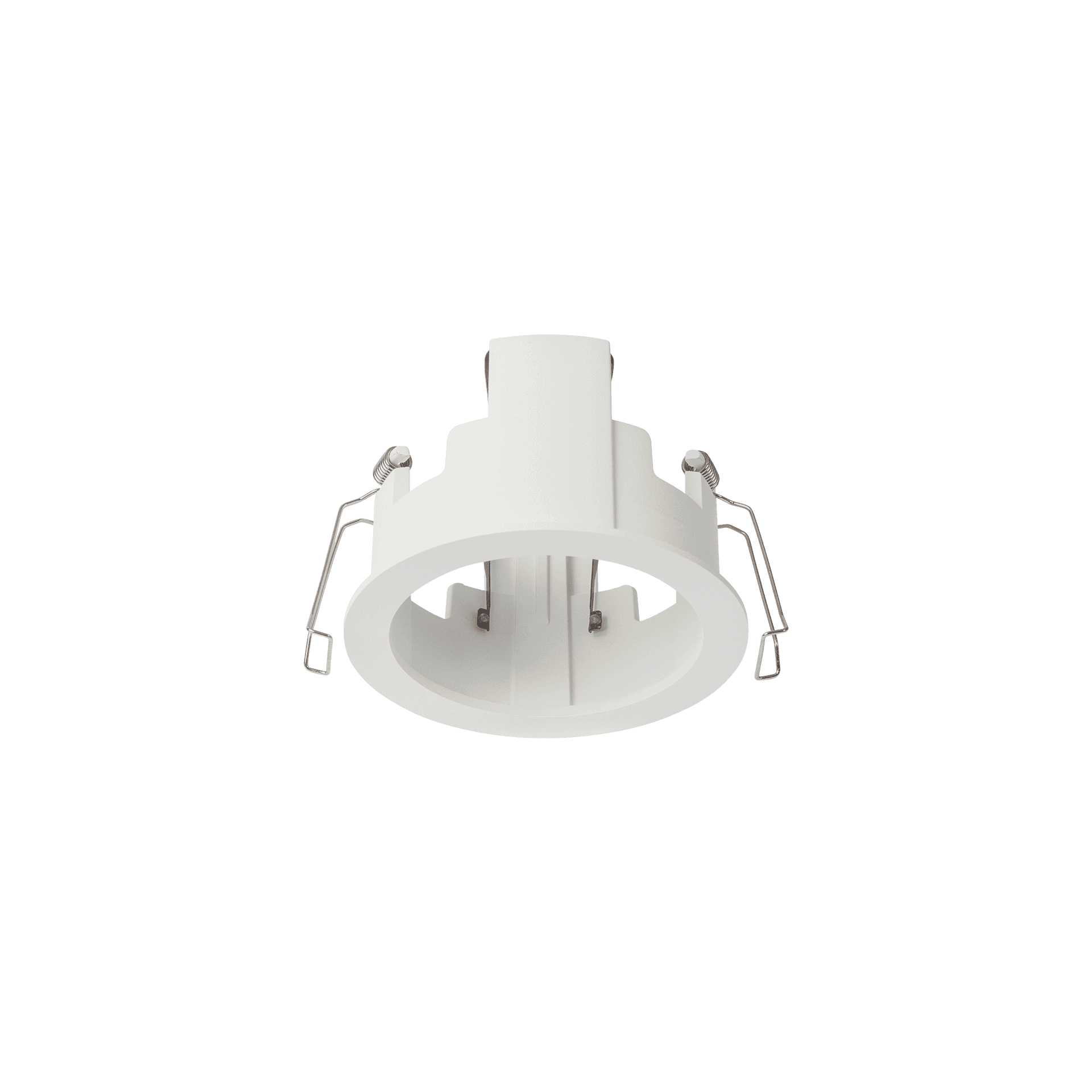

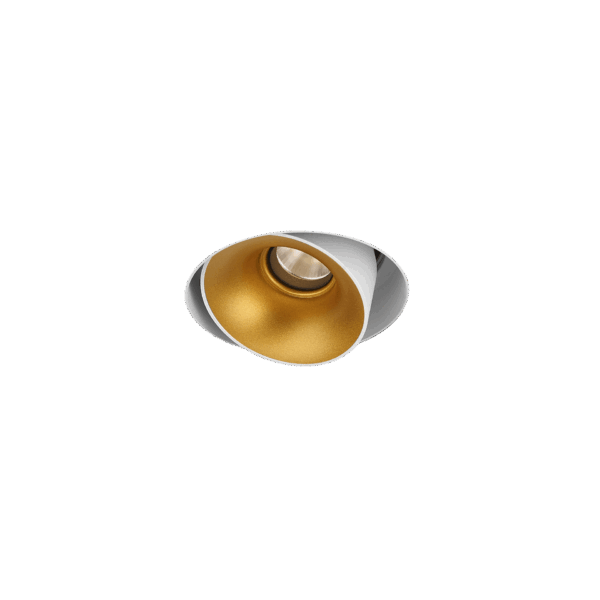

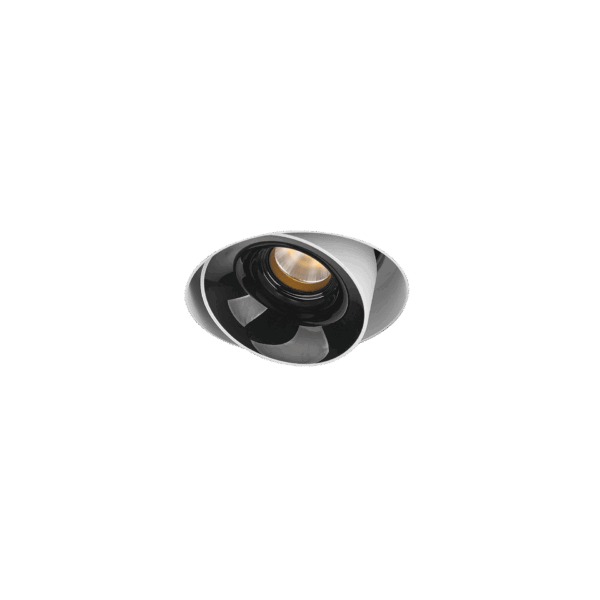

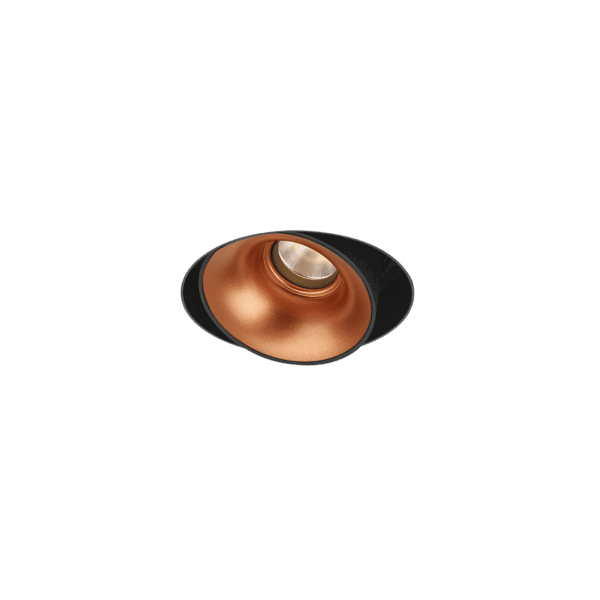

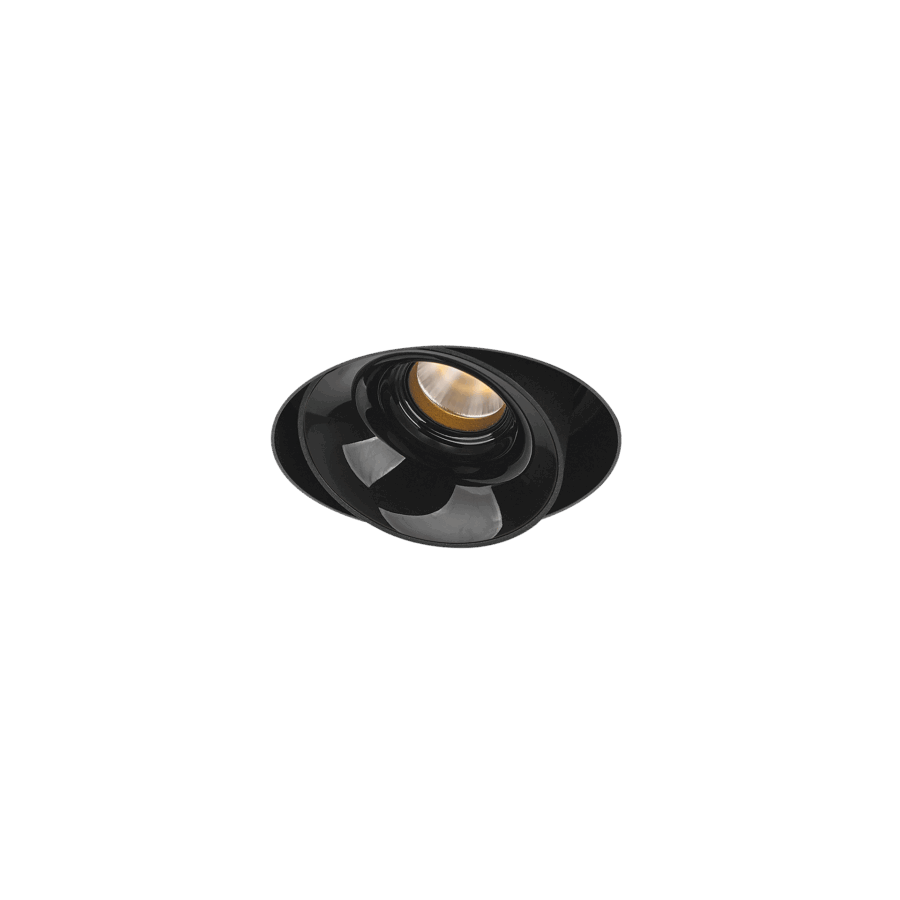

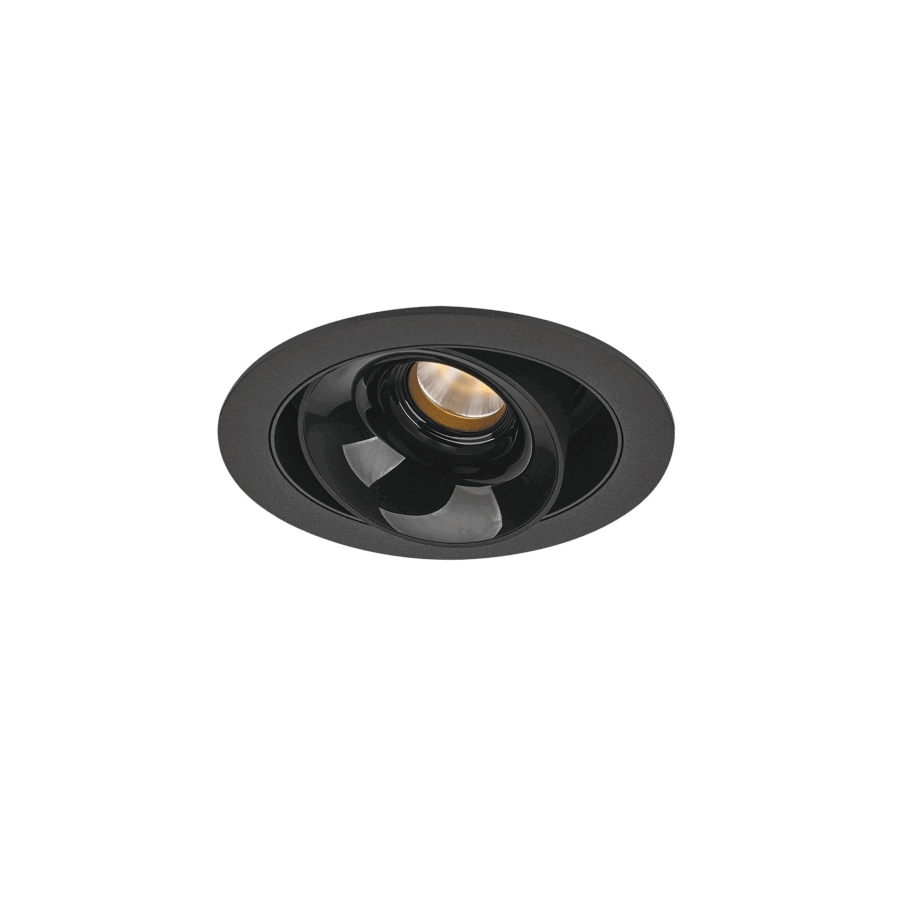

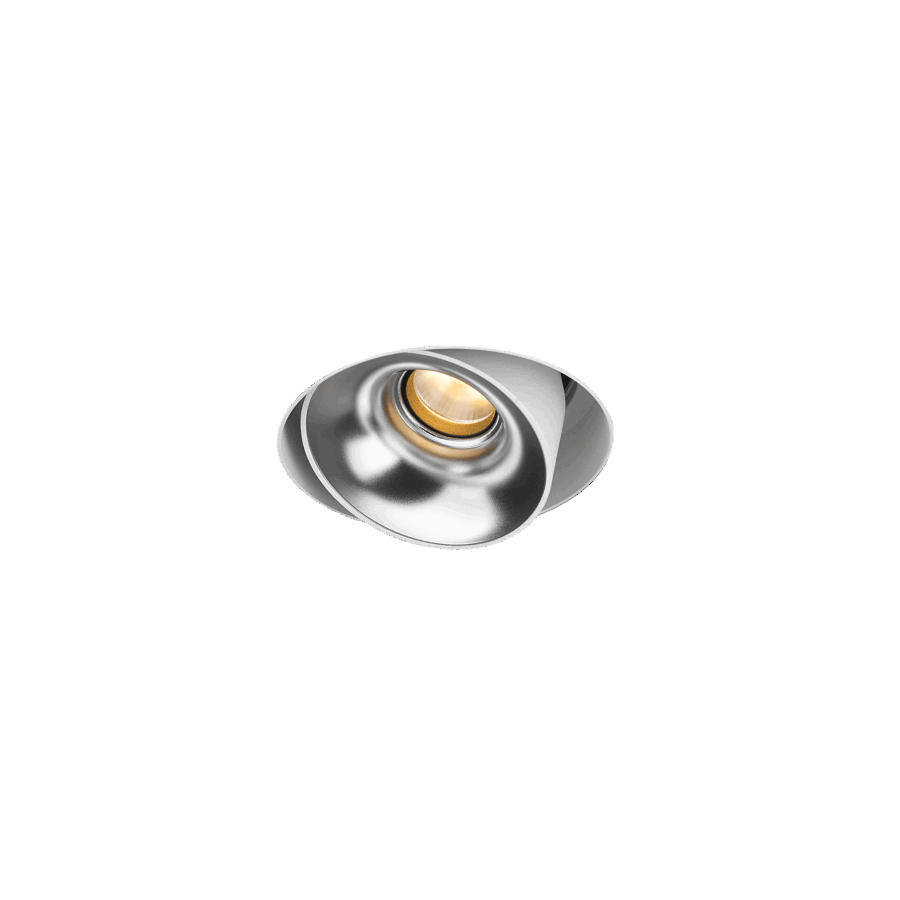

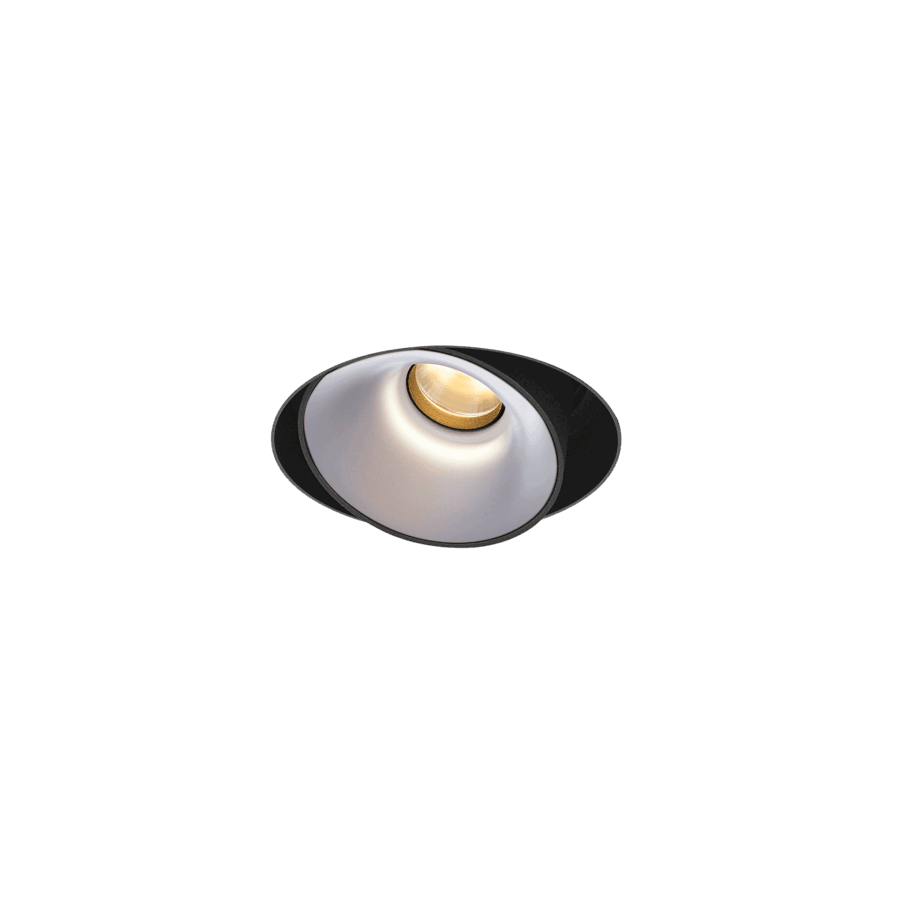

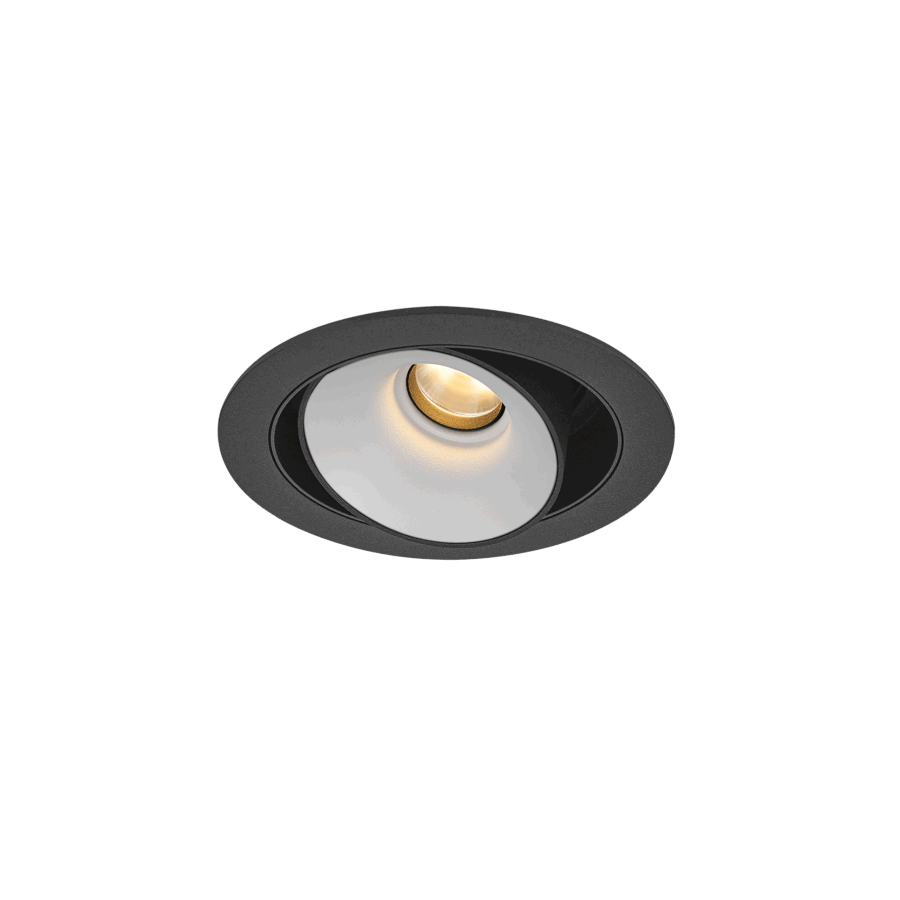

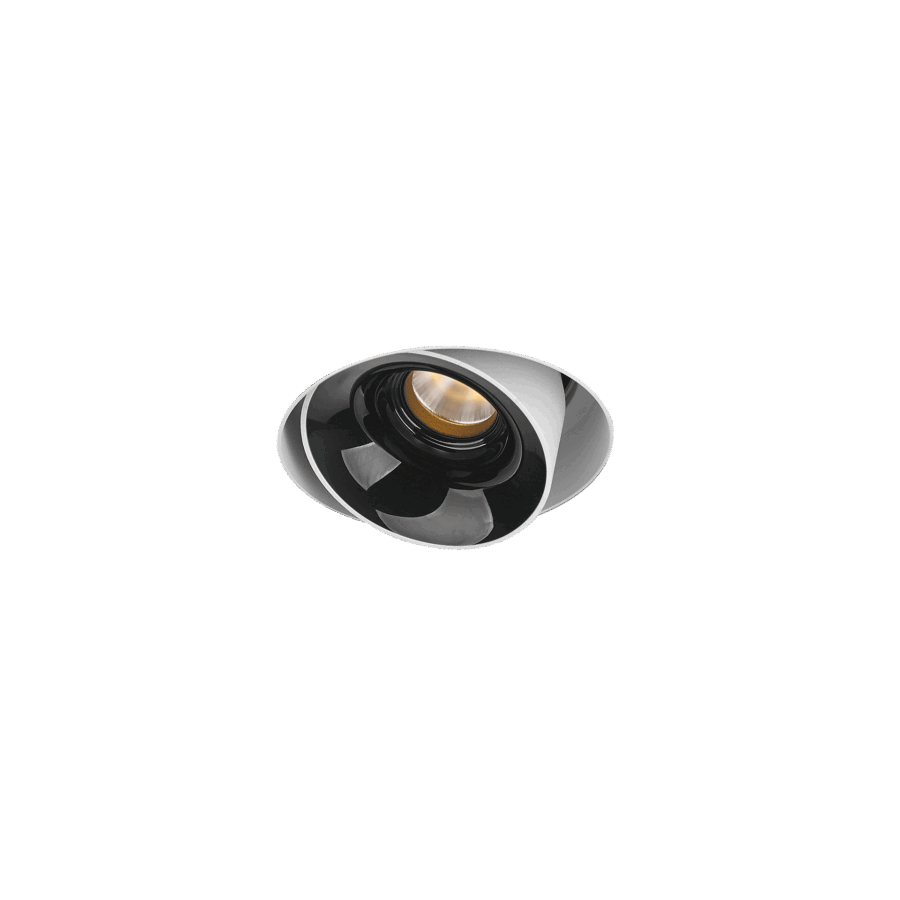

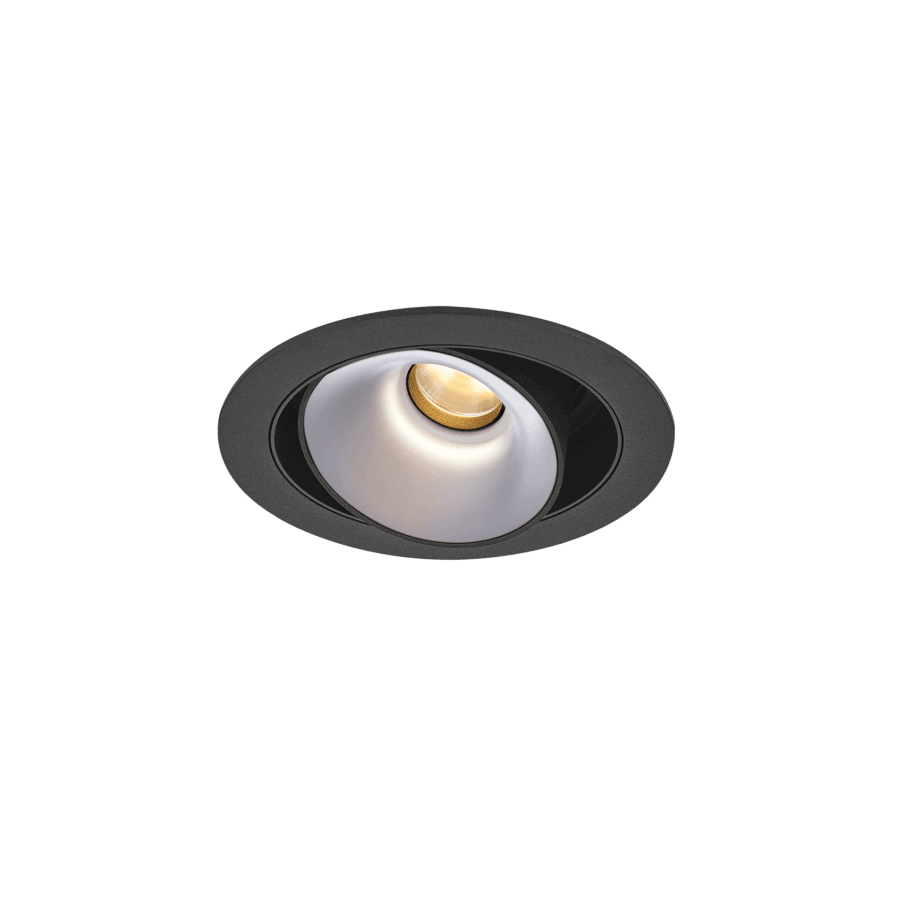

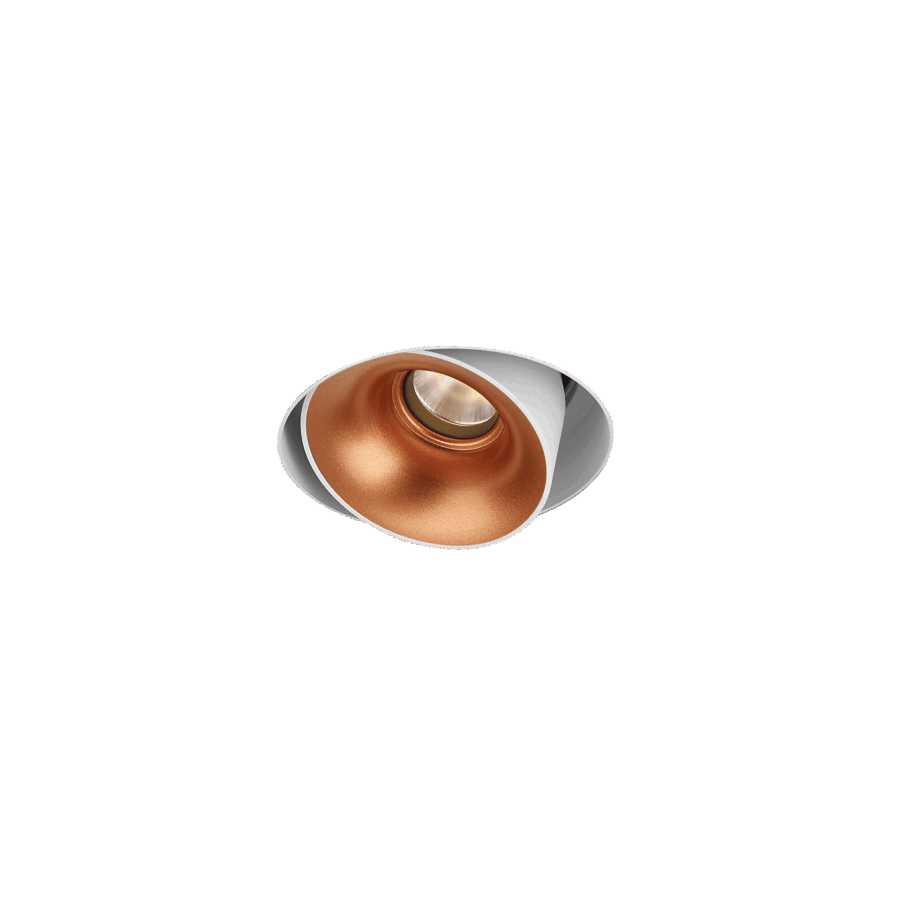

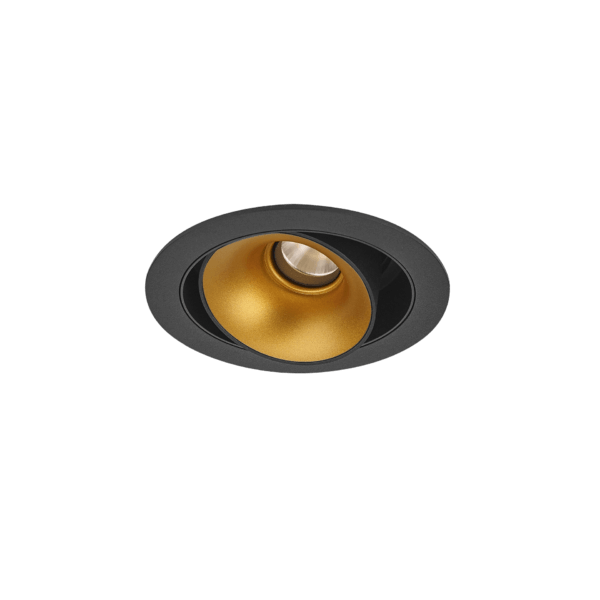

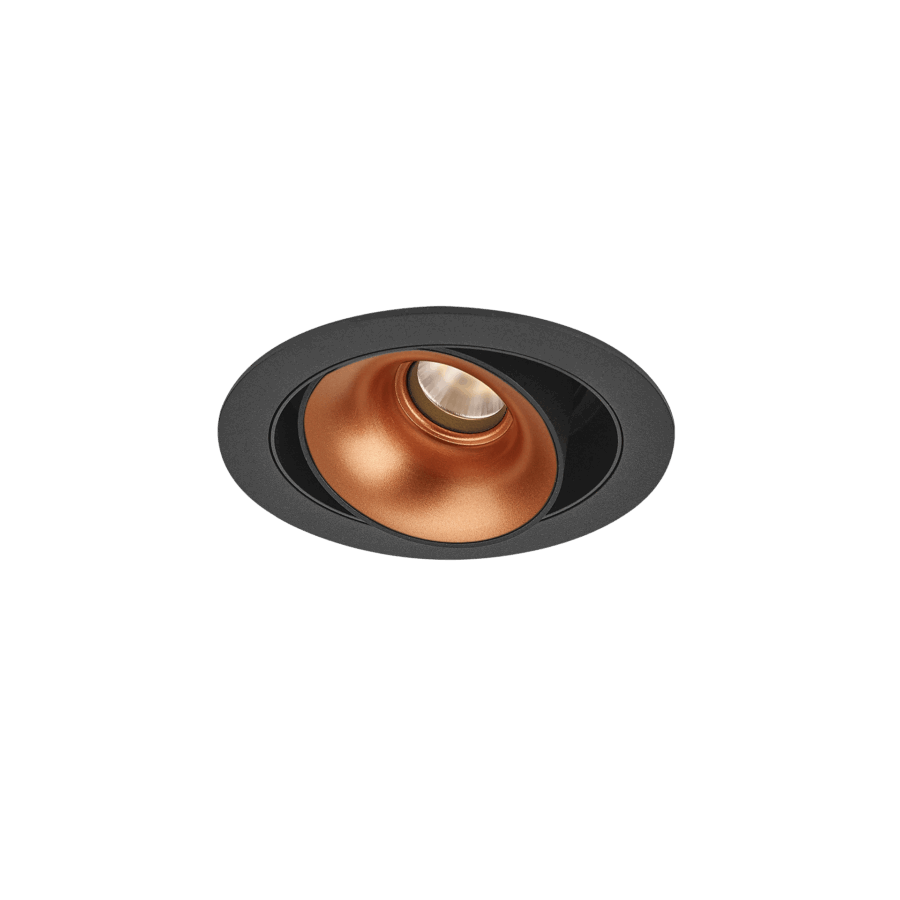

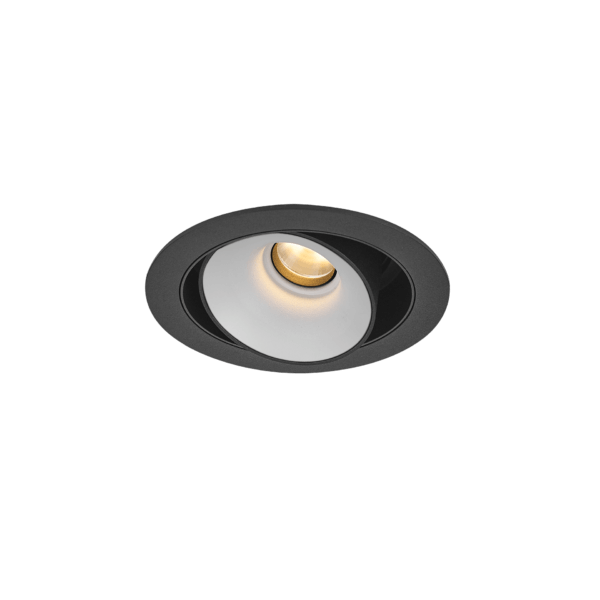

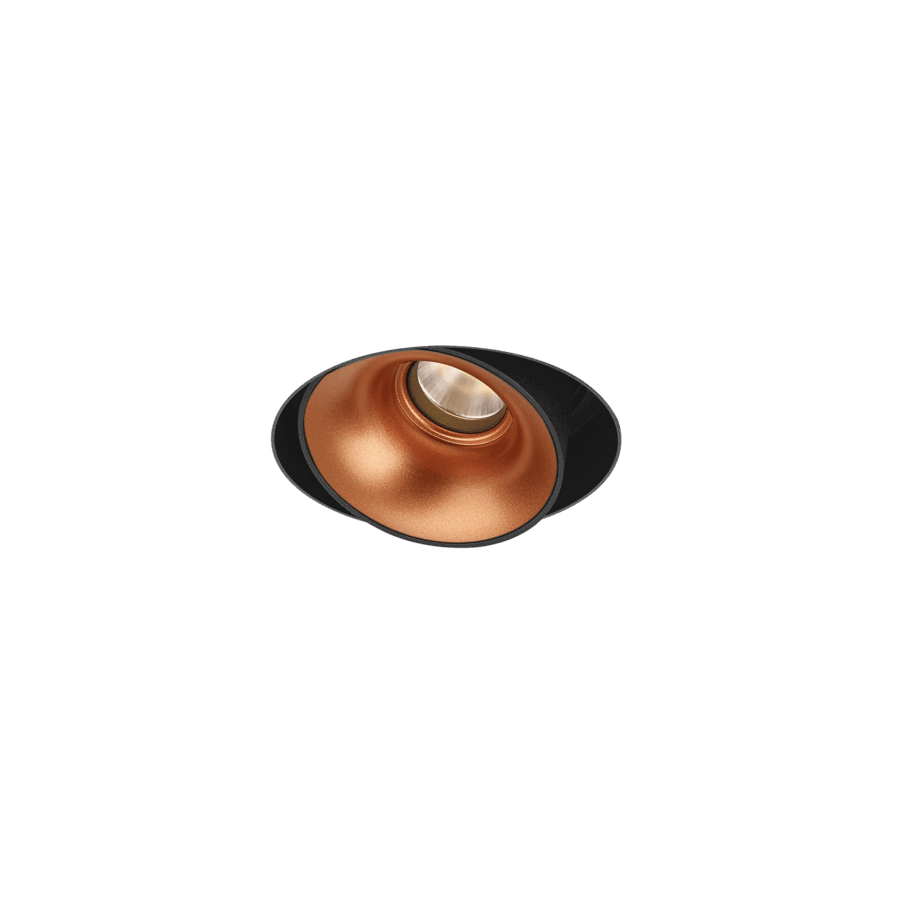

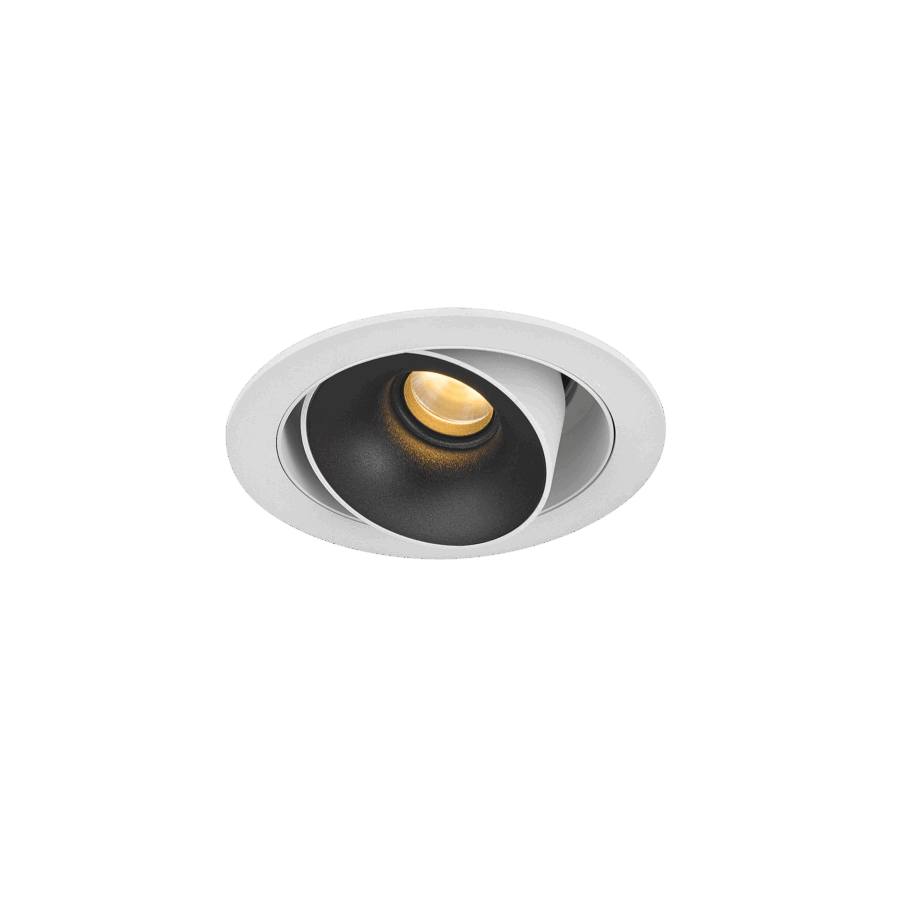

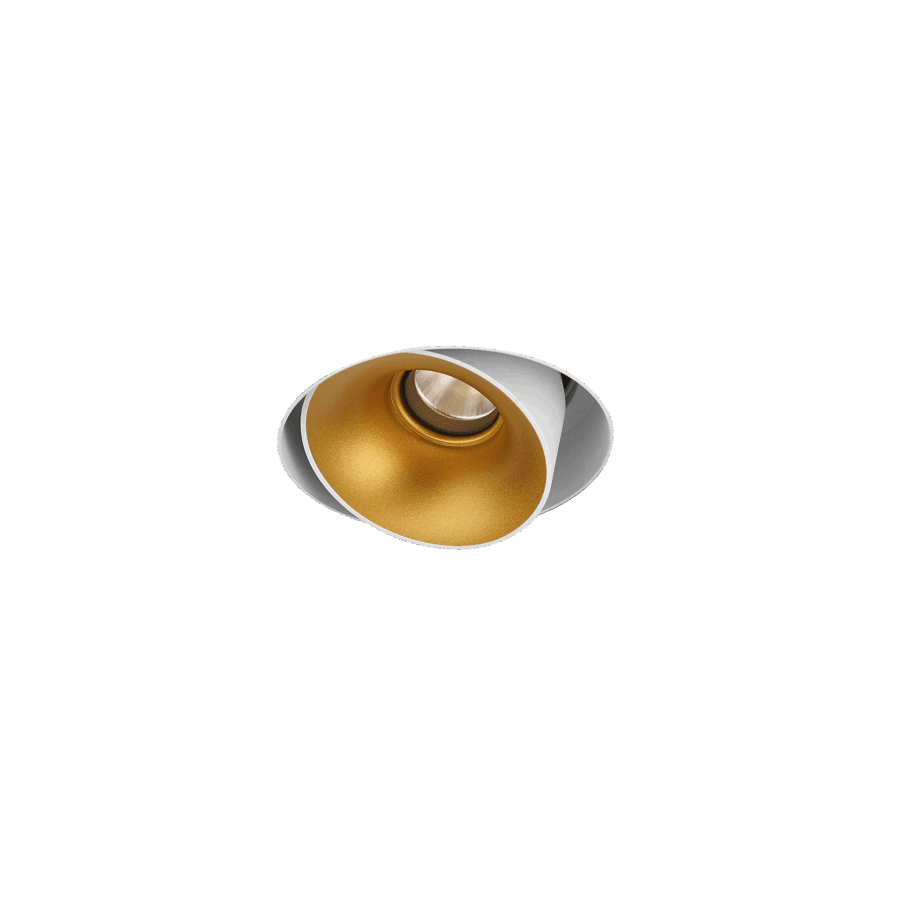

The Karizma Luce Dea Devi M is a recessed adjustable downlight from the Dea Della Luce series. Compatible with the Dea Athena modular system. Made from aluminium. Available luminaire flux: in range 900 – 950 lm. CCT: 2700K, 3000K, 4000K. Beam angles: 24° and 36°. Luminaire available in black and white. The reflectors can be changed in case of wish or need, because they are fixed by a magnet. Available reflector colours: Silver High Gloss, Black High Gloss, Chrome, White, Gold, Copper, Black Matt. The standard installation frame is single, but you can choose also for a duo, triple, quadruple or quadruple square application. Just by cutting the sides of the frames and connect them to each other.
