When it comes to wine, we select and drink a bottle based on all five of our senses – taste, smell, touch, sight and even sound. When it comes to a luminaire, besides the basic parameters like CCT, flux, efficiency, controls, we choose at first according to the design – material, size, shape, colour. Let the elegant Bordo surprise you.
Bordo
Stimulating your senses.
- Warranty on quality in years.
- Wireless lighting control based on Bluetooth.
- Digital dimming interface.
- Phase dimming systems dim the lights by changing the supply voltage.
- Dim to a warmer color from 3000K to 1800K for creating the right atmosphere.
- Ingress Protection, indicates the degree to which lighting fixtures are protected against dust and waterspray.
- Replaceable (LED only) light source by a professional.
- Replaceable control gear by a professional.
Datasheets
| Sku | Luminous Flux | CCT | CRI | Beam angle | Luminaire color | Reflector color | hf:att:pa_luminous-flux | hf:att:pa_cct | hf:att:pa_cri | hf:att:pa_beam-angle | hf:att:pa_luminaire-color | hf:att:pa_reflector-color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 205GB9403800 | 1450 lm | 4000K | 90 | 38° | Black | Specular Aluminium | 1450-lm | 4000k | 90 | 38 | black | specular-aluminium |
| 205GB9404500 | 1450 lm | 4000K | 90 | 45° | Black | Specular Aluminium | 1450-lm | 4000k | 90 | 45 | black | specular-aluminium |
| 205GW9403800 | 1450 lm | 4000K | 90 | 38° | White | Specular Aluminium | 1450-lm | 4000k | 90 | 38 | white | specular-aluminium |
| 205GW9404500 | 1450 lm | 4000K | 90 | 45° | White | Specular Aluminium | 1450-lm | 4000k | 90 | 45 | white | specular-aluminium |
| 205FW9273800 | 1275 lm | 2700K | 90 | 38° | White | Specular Aluminium | 1275-lm | 2700k | 90 | 38 | white | specular-aluminium |
| 205FW9303800 | 1355 lm | 3000K | 90 | 38° | White | Specular Aluminium | 1355-lm | 3000k | 90 | 38 | white | specular-aluminium |
| 205FW9274500 | 1275 lm | 2700K | 90 | 45° | White | Specular Aluminium | 1275-lm | 2700k | 90 | 45 | white | specular-aluminium |
| 205FW9304500 | 1355 lm | 3000K | 90 | 45° | White | Specular Aluminium | 1355-lm | 3000k | 90 | 45 | white | specular-aluminium |
| 205FB9273800 | 1275 lm | 2700K | 90 | 38° | Black | Specular Aluminium | 1275-lm | 2700k | 90 | 38 | black | specular-aluminium |
| 205FB9303800 | 1355 lm | 3000K | 90 | 38° | Black | Specular Aluminium | 1355-lm | 3000k | 90 | 38 | black | specular-aluminium |
| 205FB9274500 | 1275 lm | 2700K | 90 | 45° | Black | Specular Aluminium | 1275-lm | 2700k | 90 | 45 | black | specular-aluminium |
| 205FB9304500 | 1355 lm | 3000K | 90 | 45° | Black | Specular Aluminium | 1355-lm | 3000k | 90 | 45 | black | specular-aluminium |
Click on specification values for related products.
CRI90
LED power12.5W
System power14W
Chromaticity tolerance3 MacAdam
OpticReflector
Reflector colorSpecular Aluminium
Net. Weight0.3Kg

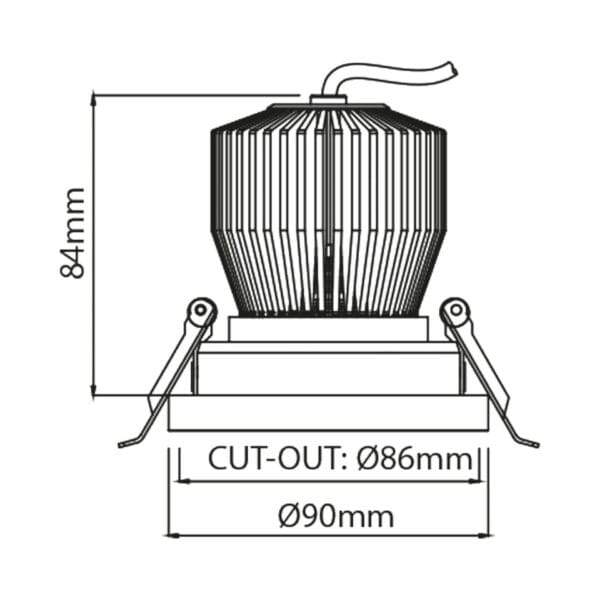

Cut out dimensionØ86mm
Luminaire dimensionØ86x98mm
Nominal fA [mA]350mA
Nominal fV [V]33.8-35.9 V
Power supplySeparate Available
Mains VoltageN/A
El. ClassClass II
Housing materialAluminum Die Cast
Lifetime50000h
Light source identifierCLU028-1204C4-273H5M3-F1, CLU028-1204C4-303H5M3-F1, CLU028-1204C4-403H5M3-F1
Light source927 (2700K / CRI90), 930 (3000K / CRI90), 940 (4000K / CRI90), Dim to Warm (1800K – 3000K / CRI90)
Warranty5Y
CollectionDelizia di Luce
Built-in height108mm

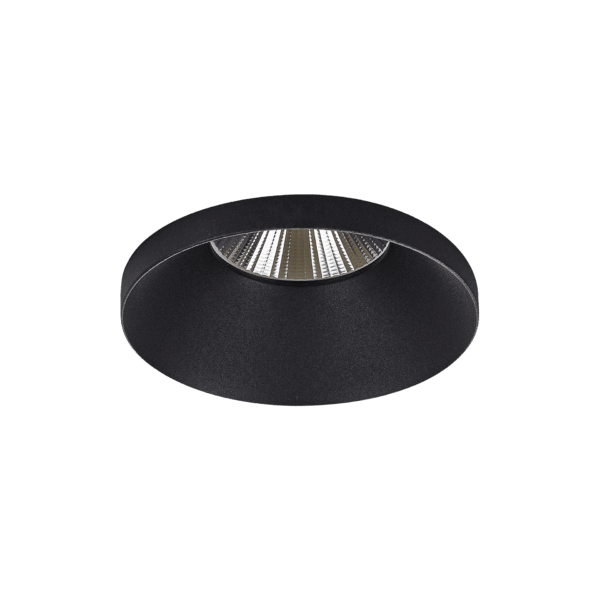

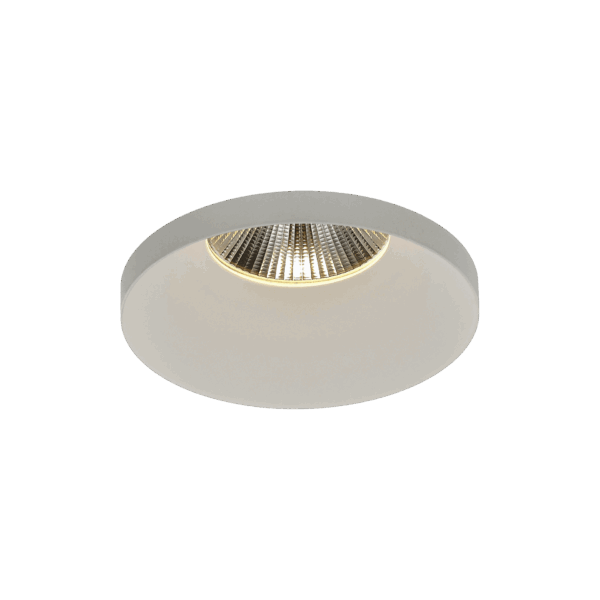

The Karizma Luce Bordo is a recessed fixed downlight from the Delizia Di Luce series. Made from aluminium. Available luminaire flux: 1275 lm, 1355 lm, 1400 lm. CCT: 2700K, 3000K, 4000K. Beam angles: 38° and 45°. Luminaire available in black and white. Reflector colour: Specular Aluminium.
