Splendore

Turn luxurious into splendid.

This luminaire provides the best combination of accent and task lighting with the highest CRI, tunable white or different CCT possibilities, and dimming. The high IP rating for wet environments makes it a splendid waterproof lighting choice for luxurious areas in and around the house. Unwind in your ultimate bathroom or relax under the canopy.

Product sheet

Installation manual

LDT files

Warranty on quality in years.
Wireless lighting control based on Bluetooth.
Digital dimming interface.
Phase dimming systems dim the lights by changing the supply voltage.
Dim to a warmer color from 3000K to 1800K for creating the right atmosphere.
Ingress Protection, indicates the degree to which lighting fixtures are protected against dust and waterspray.
Replaceable (LED only) light source by a professional.
Replaceable control gear by a professional.

Datasheets

Download, print and share all the extended technical specifications of your luminaire.

Sku	Luminous Flux	CCT	CRI	Beam angle	Luminaire color	Reflector color	hf:att:pa_luminous-flux	hf:att:pa_cct	hf:att:pa_cri	hf:att:pa_beam-angle	hf:att:pa_luminaire-color	hf:att:pa_reflector-color
208CW9272200	705 lm	2700K	90	22°	White	N/A	705-lm	2700k	90	22	white	n-a
208CW9302200	720 lm	3000K	90	22°	White	N/A	720-lm	3000k	90	22	white	n-a
208DW8402200	920 lm	4000K	80	22°	White	N/A	920-lm	4000k	80	22	white	n-a
208CW9273600	705 lm	2700K	90	36°	White	N/A	705-lm	2700k	90	36	white	n-a
208CW9303600	720 lm	3000K	90	36°	White	N/A	720-lm	3000k	90	36	white	n-a
208DW8403600	920 lm	4000K	80	36°	White	N/A	920-lm	4000k	80	36	white	n-a
208CW9276000	705 lm	2700K	90	60°	White	N/A	705-lm	2700k	90	60	white	n-a
208CW9306000	720 lm	3000K	90	60°	White	N/A	720-lm	3000k	90	60	white	n-a
208DW8406000	920 lm	4000K	80	60°	White	N/A	920-lm	4000k	80	60	white	n-a
208CB9272200	705 lm	2700K	90	22°	Black	N/A	705-lm	2700k	90	22	black	n-a
208CB9302200	720 lm	3000K	90	22°	Black	N/A	720-lm	3000k	90	22	black	n-a
208DB8402200	920 lm	4000K	80	22°	Black	N/A	920-lm	4000k	80	22	black	n-a
208CB9273600	705 lm	2700K	90	36°	Black	N/A	705-lm	2700k	90	36	black	n-a
208CB9303600	720 lm	3000K	90	36°	Black	N/A	720-lm	3000k	90	36	black	n-a
208DB8403600	920 lm	4000K	80	36°	Black	N/A	920-lm	4000k	80	36	black	n-a
208CB9276000	705 lm	2700K	90	60°	Black	N/A	705-lm	2700k	90	60	black	n-a
208CB9306000	720 lm	3000K	90	60°	Black	N/A	720-lm	3000k	90	60	black	n-a
208DB8406000	920 lm	4000K	80	60°	Black	N/A	920-lm	4000k	80	60	black	n-a

Click on specification values for related products.

Luminous Flux705 lm, 720 lm, 920 lm

CRI80, 90

CCT2700K, 3000K, 4000K

LED power9W

System power11W

System efficiency64lm/W, 65lm/W, 84lm/W

Chromaticity tolerance3 MacAdam

OpticLens

Beam angle22°, 36°, 60°

Luminaire colorBlack, White

Reflector colorN/A

IP ratingIP54/IP20

Net. Weight0.22Kg

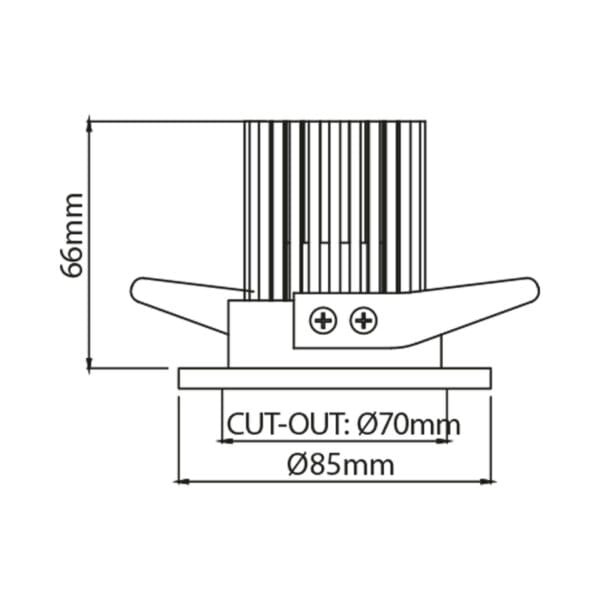

Cut out dimensionØ70mm

Luminaire dimensionØ85x59mm

Nominal fA [mA]500mA

Nominal fV [V]18.4V

Power supplySeparate Available

Mains VoltageN/A

El. ClassClass II

Housing materialAluminum Die Cast

Lifetime50000h

Light source840 (4000K / CRI80), 927 (2700K / CRI90), 930 (3000K / CRI90), Dim to Warm (1800K – 3000K / CRI90)

Warranty5Y

CollectionDelizia di Luce

Built-in height80mm

ControlCasambi, DALI, Phase Cut

The Karizma Luce Splendore is a fixed led downlight from the Delizia Di Luce series. Made from aluminium. Available luminaire flux range: 705-920 lm. CCT: 2700K, 3000K, 4000K. Beam angles: 22°, 36° and 60°. Luminaire available in black and white. Reflector colour: N/A.
