The Profondo is a fixed downlight with a deep recessed lamp position. Profondo means ‘deep’, and that is exactly what this luminaire does: it makes a deep impression. Not only because of the elegant looks, but also because of the unique wide range of available colours.
Profondo Basso
A deep impression.
- Warranty on quality in years.
- Wireless lighting control based on Bluetooth.
- Digital dimming interface.
- Phase dimming systems dim the lights by changing the supply voltage.
- Dim to a warmer color from 3000K to 1800K for creating the right atmosphere.
- Ingress Protection, indicates the degree to which lighting fixtures are protected against dust and waterspray.
- Replaceable (LED only) light source by a professional.
- Replaceable control gear by a professional.
Datasheets
| Sku | Luminous Flux | CCT | CRI | Beam angle | Luminaire color | Reflector color | hf:att:pa_luminous-flux | hf:att:pa_cct | hf:att:pa_cri | hf:att:pa_beam-angle | hf:att:pa_luminaire-color | hf:att:pa_reflector-color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 202CW9272400 | 720 lm | 2700K | 90 | 24° | White | Specular Aluminium | 720-lm | 2700k | 90 | 24 | white | specular-aluminium |
| 202CW9274000 | 720 lm | 2700K | 90 | 40° | White | Specular Aluminium | 720-lm | 2700k | 90 | 40 | white | specular-aluminium |
| 202CB9272400 | 720 lm | 2700K | 90 | 24° | Black | Specular Aluminium | 720-lm | 2700k | 90 | 24 | black | specular-aluminium |
| 202CB9274000 | 720 lm | 2700K | 90 | 40° | Black | Specular Aluminium | 720-lm | 2700k | 90 | 40 | black | specular-aluminium |
| 202CW9302400 | 730 lm | 3000K | 90 | 24° | White | Specular Aluminium | 730-lm | 3000k | 90 | 24 | white | specular-aluminium |
| 202CW9304000 | 730 lm | 3000K | 90 | 40° | White | Specular Aluminium | 730-lm | 3000k | 90 | 40 | white | specular-aluminium |
| 202CB9302400 | 730 lm | 3000K | 90 | 24° | Black | Specular Aluminium | 730-lm | 3000k | 90 | 24 | black | specular-aluminium |
| 202CB9304000 | 730 lm | 3000K | 90 | 40° | Black | Specular Aluminium | 730-lm | 3000k | 90 | 40 | black | specular-aluminium |
| 202DB9402400 | 860 lm | 4000K | 90 | 24° | Black | Specular Aluminium | 860-lm | 4000k | 90 | 24 | black | specular-aluminium |
| 202DB9404000 | 860 lm | 4000K | 90 | 40° | Black | Specular Aluminium | 860-lm | 4000k | 90 | 40 | black | specular-aluminium |
| 202DW9402400 | 860 lm | 4000K | 90 | 24° | White | Specular Aluminium | 860-lm | 4000k | 90 | 24 | white | specular-aluminium |
| 202DW9404000 | 860 lm | 4000K | 90 | 40° | White | Specular Aluminium | 860-lm | 4000k | 90 | 40 | white | specular-aluminium |
Click on specification values for related products.
CRI90
LED power9W
Chromaticity tolerance3 MacAdam
OpticReflector
Reflector colorSpecular Aluminium

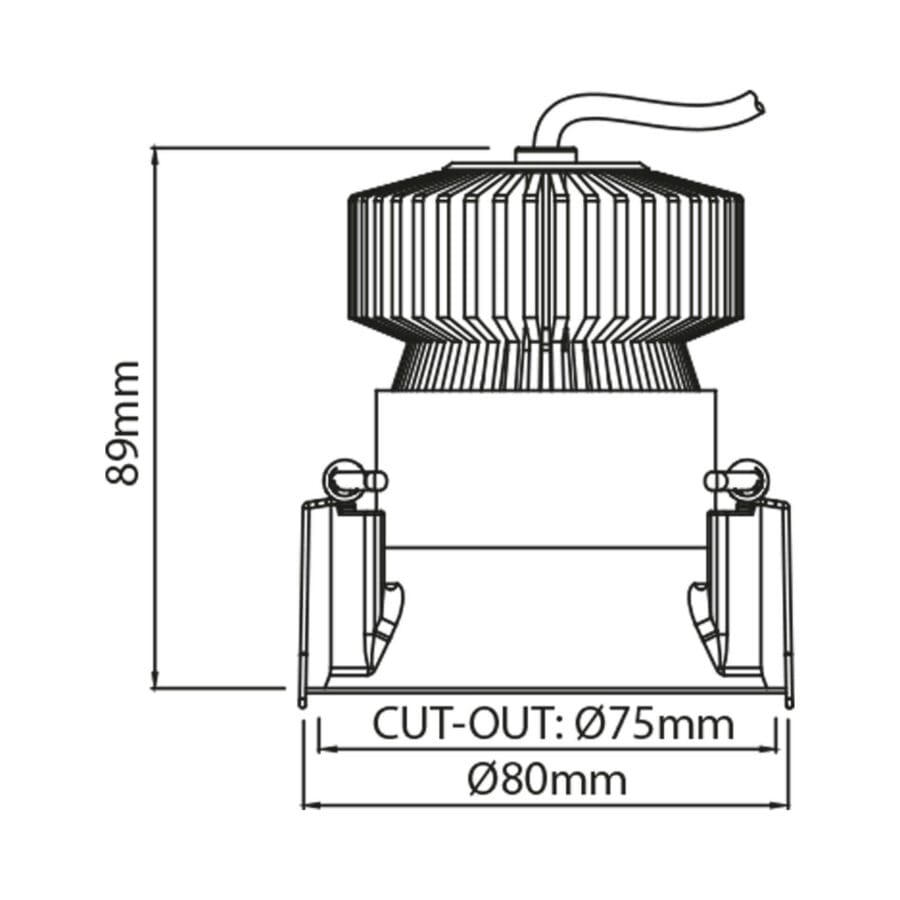

Cut out dimensionØ75mm
Luminaire dimensionØ80x89mm
Nominal fA [mA]500mA
Nominal fV [V]18.4V
Power supplySeparate Available
Mains VoltageN/A
El. ClassClass II
Housing materialAluminum Die Cast
Lifetime50000h
Light source energy classF
Light source identifierBXRE-27G0800-D-73, BXRE-30G0800-D-73
Light source927 (2700K / CRI90), 930 (3000K / CRI90), 940 (4000K / CRI90), Dim to Warm (1800K – 3000K / CRI90)
Warranty5Y
CollectionDelizia di Luce
Built-in height100mm

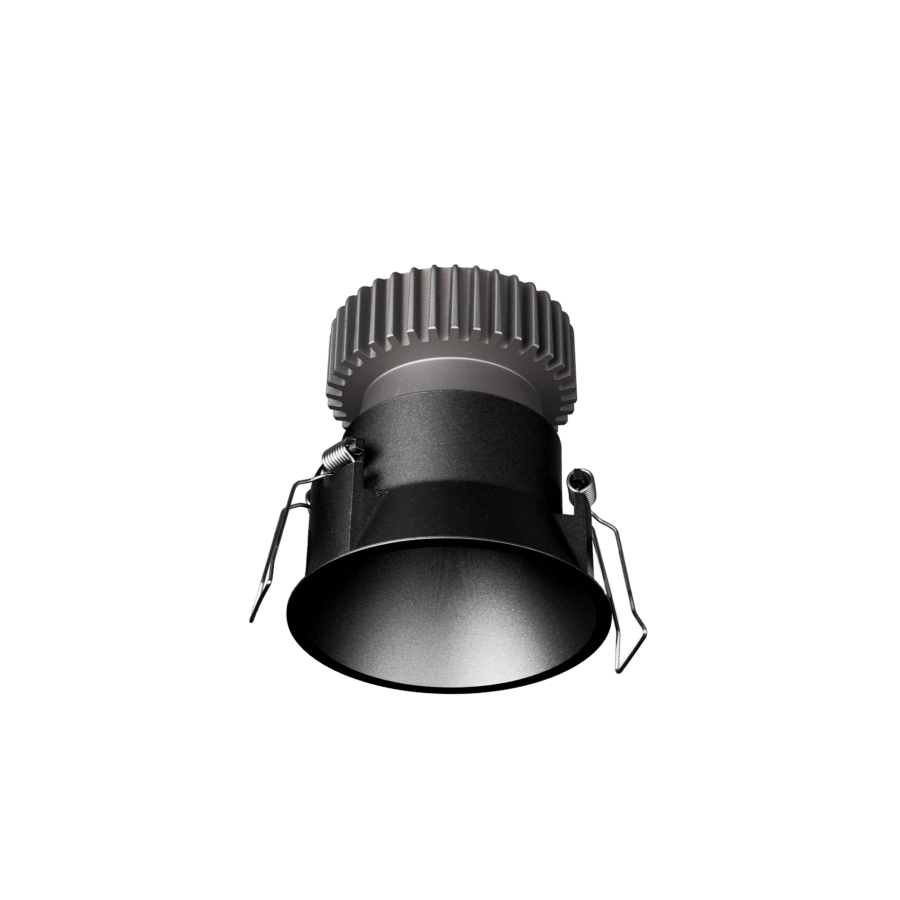

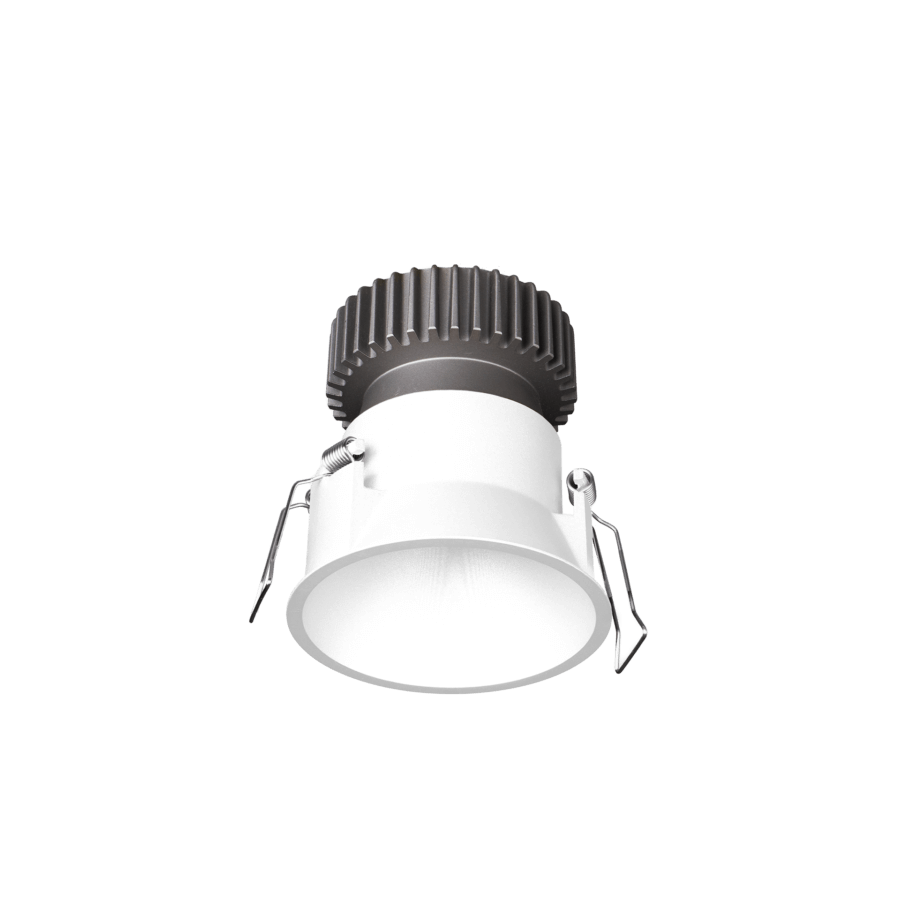

The Karizma Luce Profondo Basso is a fixed led downlight with deep recessed lamp position from the Delizia Di Luce series. Made from aluminium. Available luminaire flux range: 720-950 lm. CCT: 2700K, 3000K, 4000K. Beam angles: 24° and 40°. Luminaire available in black and white. Reflector colour: Specular Aluminium.
