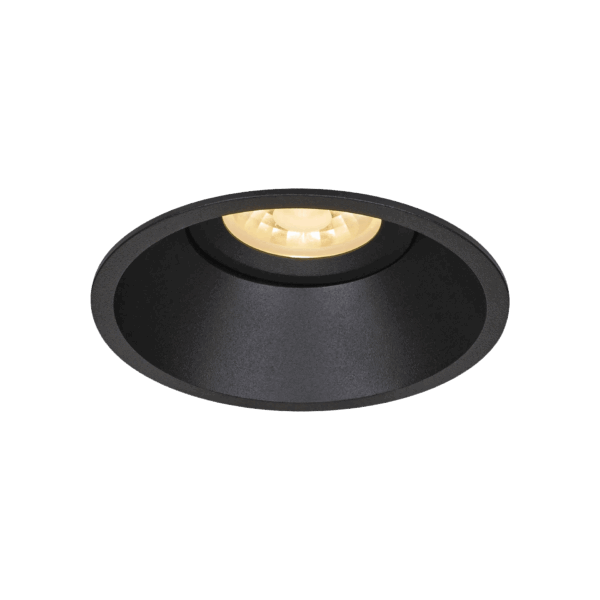

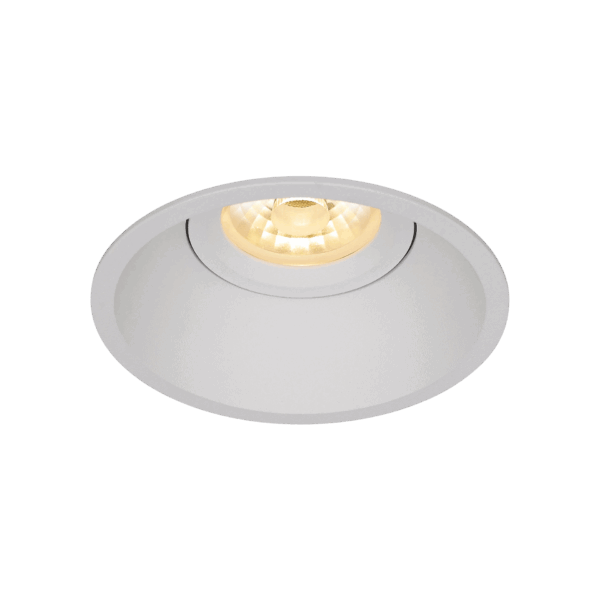

The Popolare Lente is an adjustable led downlight. The deep recessed LED module with optical lens helps to create a calm and clean lighting atmosphere in hotel rooms, hallways, lobby’s and restaurants. The Karizma Luce Popolare Lente is very popular amongst architect and is often used in hospitality lighting.
Popolare Lente
Meet our popular luminaire.
- Warranty on quality in years.
- Wireless lighting control based on Bluetooth.
- Digital dimming interface.
- Phase dimming systems dim the lights by changing the supply voltage.
- Dim to a warmer color from 3000K to 1800K for creating the right atmosphere.
- Ingress Protection, indicates the degree to which lighting fixtures are protected against dust and waterspray.
- Replaceable (LED only) light source by a professional.
- Replaceable control gear by a professional.
Datasheets
| SKU | Luminous Flux | CCT | CRI | Beam Angle | Luminaire Color | Reflector Color |
|---|---|---|---|---|---|---|
| 108CW9272200 | 705 lm | 2700K | 90 | 22° | White | N/A |
| 108CW9302200 | 720 lm | 3000K | 90 | 22° | White | N/A |
| 108CW9273600 | 705 lm | 2700K | 90 | 36° | White | N/A |
| 108CW9303600 | 720 lm | 3000K | 90 | 36° | White | N/A |
| 108CW9276000 | 705 lm | 2700K | 90 | 60° | White | N/A |
| 108CW9306000 | 720 lm | 3000K | 90 | 60° | White | N/A |
| 108CB9272200 | 705 lm | 2700K | 90 | 22° | Black | N/A |
| 108CB9302200 | 720 lm | 3000K | 90 | 22° | Black | N/A |
| 108CB9273600 | 705 lm | 2700K | 90 | 36° | Black | N/A |
| 108CB9303600 | 720 lm | 3000K | 90 | 36° | Black | N/A |
| 108CB9276000 | 705 lm | 2700K | 90 | 60° | Black | N/A |
| 108CB9306000 | 720 lm | 3000K | 90 | 60° | Black | N/A |
| 108DB9402200 | 850 lm | 4000K | 90 | 22° | Black | N/A |
| 108DB9403600 | 850 lm | 4000K | 90 | 36° | Black | N/A |
| 108DB9406000 | 850 lm | 4000K | 90 | 60° | Black | N/A |
| 108DW9402200 | 850 lm | 4000K | 90 | 22° | White | N/A |
| 108DW9403600 | 850 lm | 4000K | 90 | 36° | White | N/A |
| 108DW9406000 | 850 lm | 4000K | 90 | 60° | White | N/A |
Click on specification values for related products.
CRI90
LED power9W
System power11.5W
Chromaticity tolerance3 MacAdam
OpticLens
Reflector colorN/A
Net. Weight0.2Kg

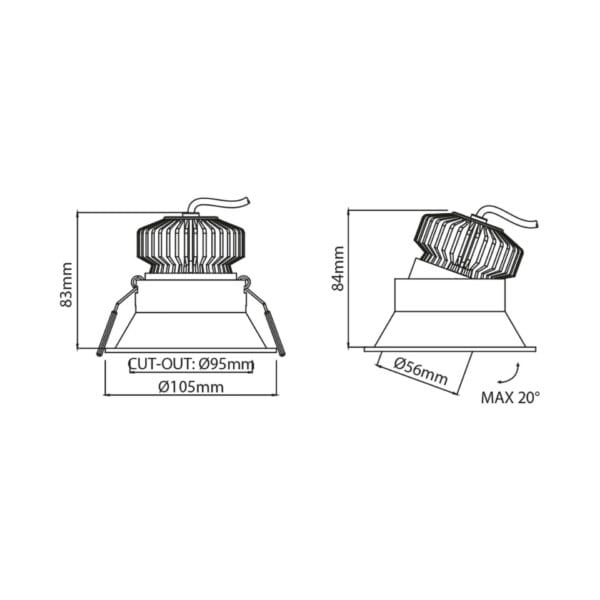

Cut out dimensionØ95mm
Luminaire dimensionØ105x83mm
Nominal fA [mA]500mA
Nominal fV [V]18.4V
Power supplySeparate Available
Mains VoltageN/A
El. ClassClass II
Housing materialAluminum Die Cast
Lifetime50000h
Light source energy classF
Light source identifierBXRE-27G0800-D-73, BXRE-30G0800-D-73, BXRE-40G0800-D-73
Light source927 (2700K / CRI90), 930 (3000K / CRI90), 940 (4000K / CRI90), Dim to Warm (1800K – 3000K / CRI90)
Warranty5Y
CollectionDelizia di Luce
Built-in height110mm
