How to use a 10° beam angle effectively in lighting design?

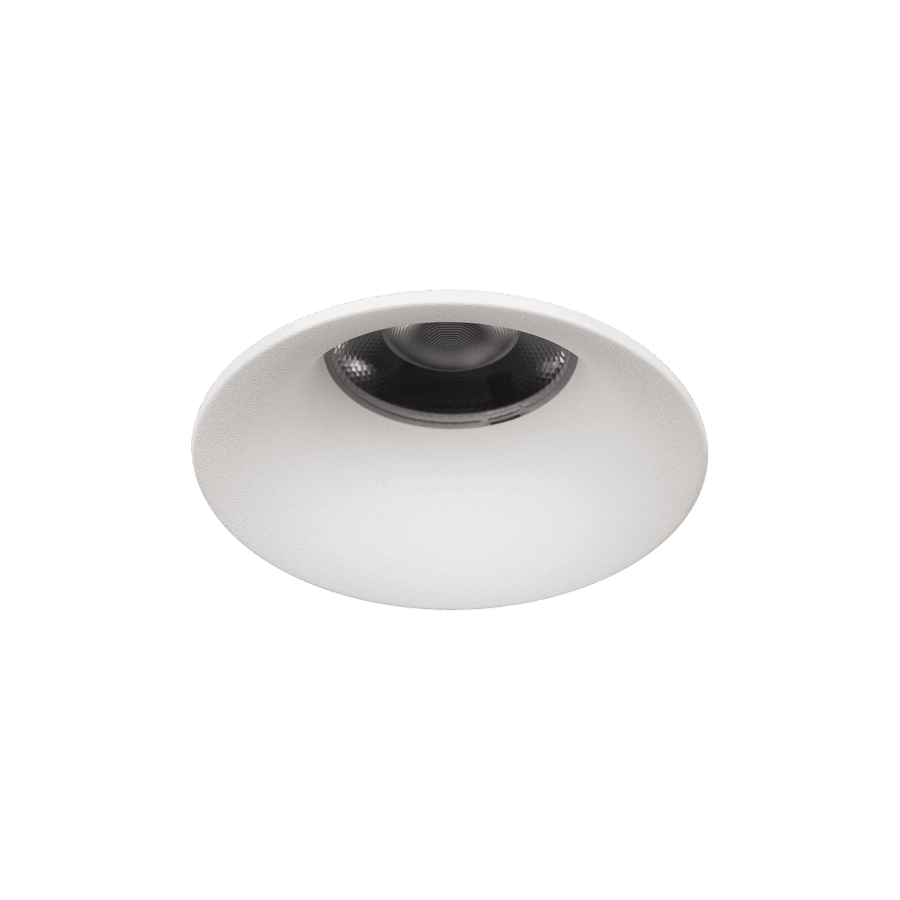

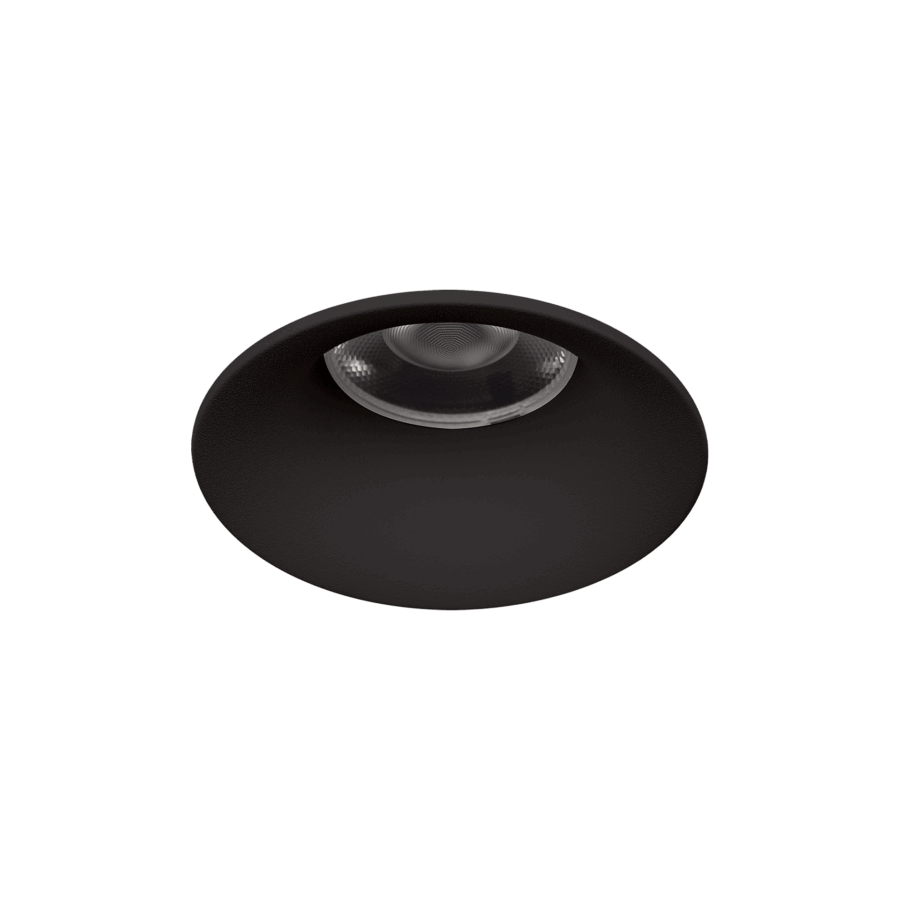

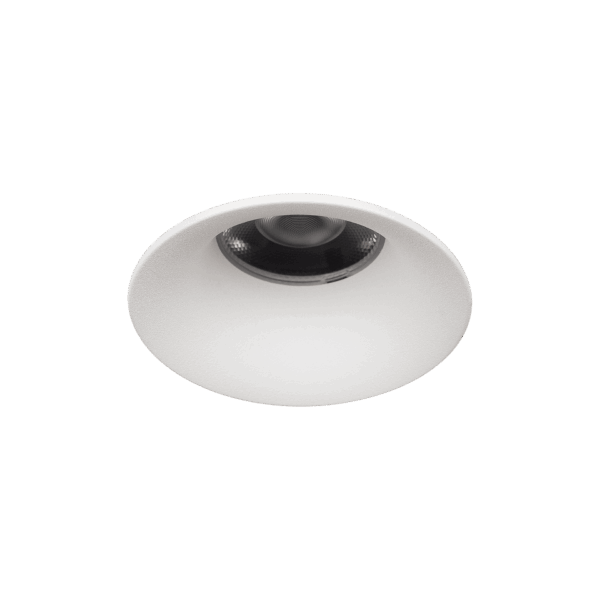

Amata M Lente from Karizma Luce features a precision lens that creates a 10° narrow beam. This type of optic provides a sharp, focused light cone that is ideal for accent lighting, object illumination, or vertical highlighting in retail, galleries, or boutique hospitality spaces.
Beam footprint: what to expect?
The size of the beam footprint depends directly on the installation height. A 10° beam typically creates:
| Installation Height (m) | Beam Diameter (m) |
|---|
| 2.0 | 0.35 |
| 3.0 | 0.55 |
| 4.0 | 0.75 |
| 5.0 | 0.95 |
This calculation is approximate and assumes a standard cone without beam softening or diffusers.
Application recommendations
Use the 10° beam when you need precise light control with minimal spill. It is ideal for:
- Illuminating statues, vases, or art pieces
- Highlighting textures on vertical surfaces
- Creating dramatic spot effects in dark environments
- Focusing light on tables or specific furniture pieces
Installation height: best practices
For most interiors with standard ceiling heights (2.5–3m), the 10° beam is perfect for small object highlighting or display lighting. In higher spaces (4–5m), the same beam will cover a larger footprint and can create striking accent lighting from a distance.
Lighting designers should always consider the viewing angle and ensure that the light does not produce glare when seen from common viewpoints. Combining Amata M Lente with other beam angles in the same project provides both contrast and visual hierarchy.
For projects requiring a smaller fixture with similar precision, consider the Dea Amata S, which offers the same 10° beam angle in a more compact form factor.
If you prefer a wider beam in the same design, explore the Dea Amata M, which provides broader illumination while maintaining the elegant aesthetics of the Amata series.
Karizma Luce offers Amata M Lente as a solution for precise, architectural accent lighting — delivering control, contrast, and focus exactly where needed.
