Datasheet

TR M Rondo Rondo duo

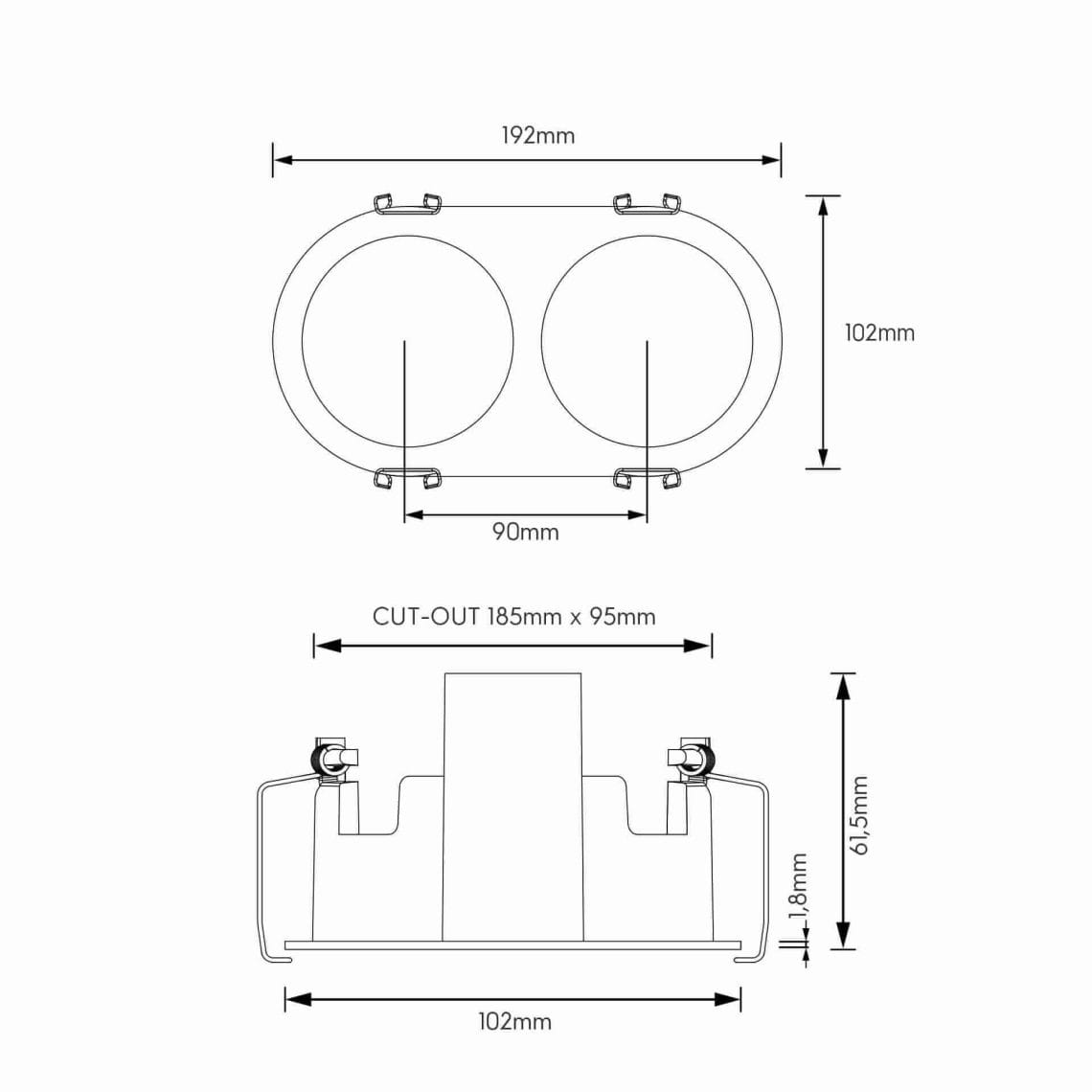

Technical drawing of the Dea Athena M T Rondo Rondo duo, a versatile modular system, illustrating detailed dimensions and design specifications.

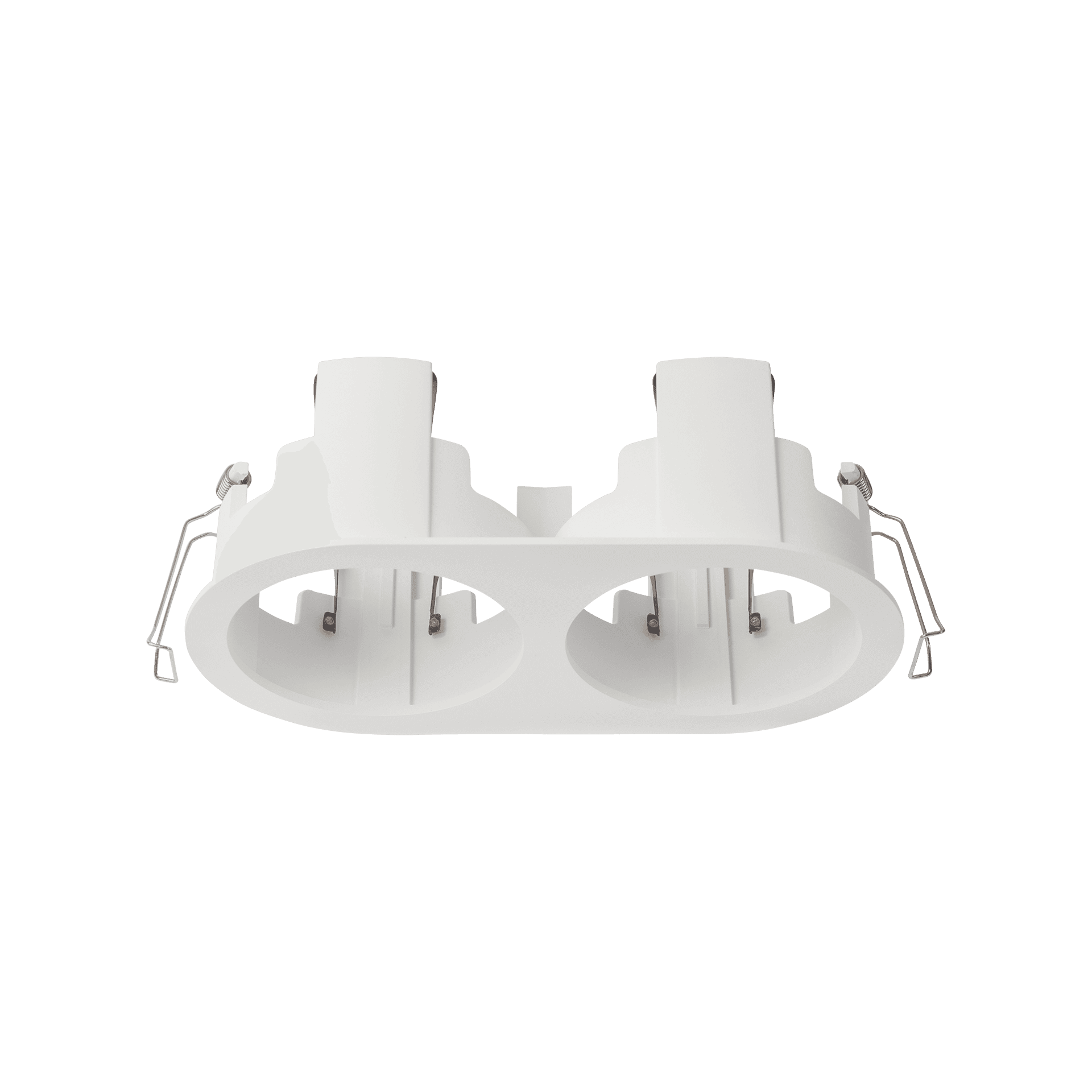

White version of the Dea Athena M T Rondo Rondo duo, a versatile modular system designed by Karizma Luce.

SKU	: A-T-M-R-R DUO WH
Housing Material	: Aluminum Die Cast
Housing Colour	: White (RAL 9003)
Cut-Out [mm]	: 185x95mm
Certifications/Declarations	: CE/UKCA
Warranty [Y]	: 5Y

All rated values @ ambient temperature of 25° C. Electric and photometric values are initially subject to a tolerance of +/- 10%. Tolerance of color temperature +/- 150K. Technical data can change without prior notice.
