Datasheet

Vuoto Wall

Technical drawing of the Vuote Wall, a surface-mounted spot, illustrating detailed dimensions and design specifications.

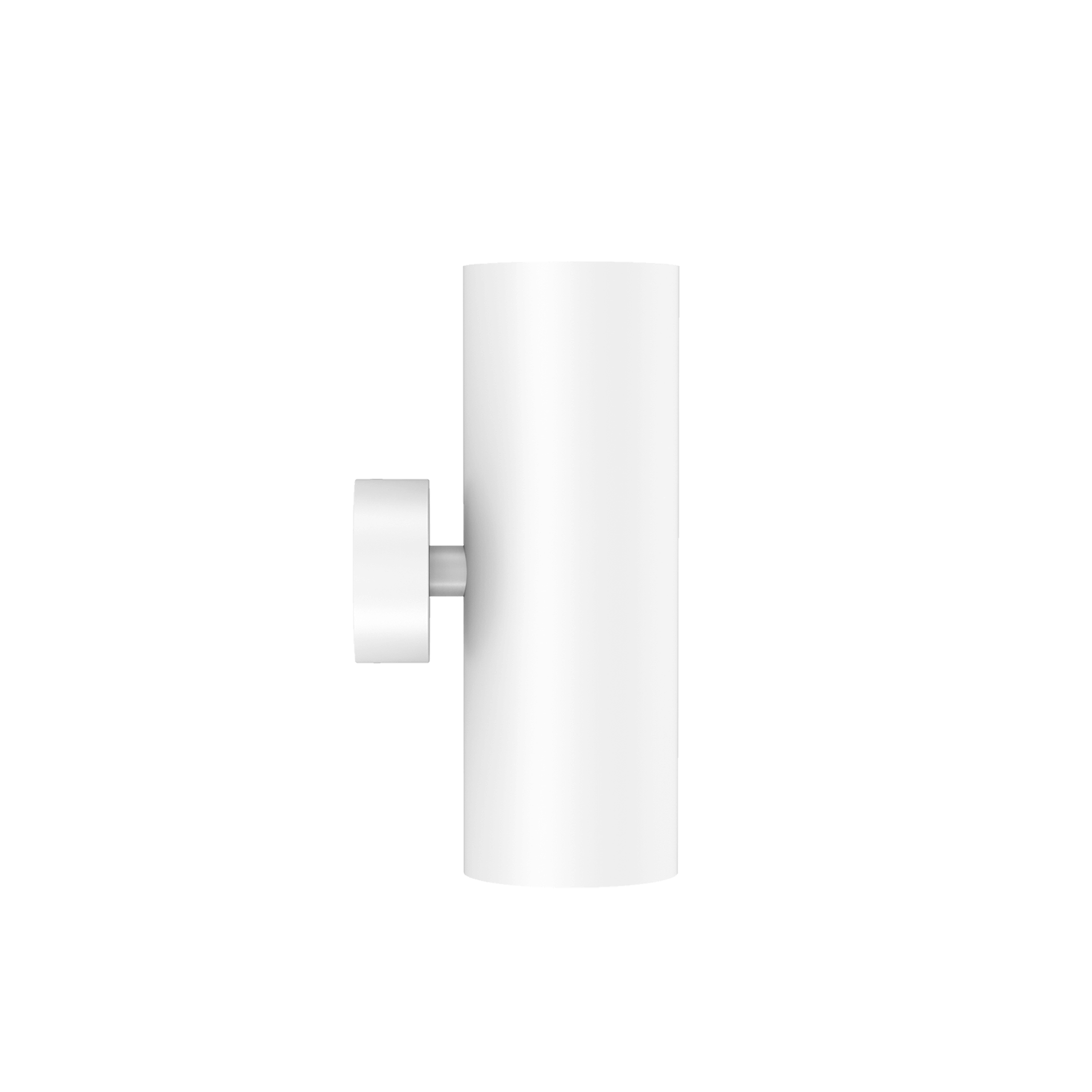

White version of the Vuote Wall, a surface-mounted spot designed by Karizma Luce.

SKU	: 616AW00000WM
Housing Material	: Aluminum Die Cast
Housing Colour	: White (RAL 9003)
Luminaire Dimension [mm]	: Ø58x165mm
System Power [W]	: max. 2 x 6W GU10
Light Source	: GU10 (not included)
Ingress Protection	: IP20
Electrical Safety Class	: Class I
Net Weight [Kg]	: 0.22Kg
Certifications/Declarations	: CE/UKCA
Warranty [Y]	: 5Y

All rated values @ ambient temperature of 25° C. Electric and photometric values are initially subject to a tolerance of +/- 10%. Tolerance of color temperature +/- 150K. Technical data can change without prior notice.
