Datasheet

Dea Eros XS ME-in duo

Technical drawing of the Dea Eros XS MU-in duo, a recessed luminaire, illustrating detailed dimensions and design specifications.

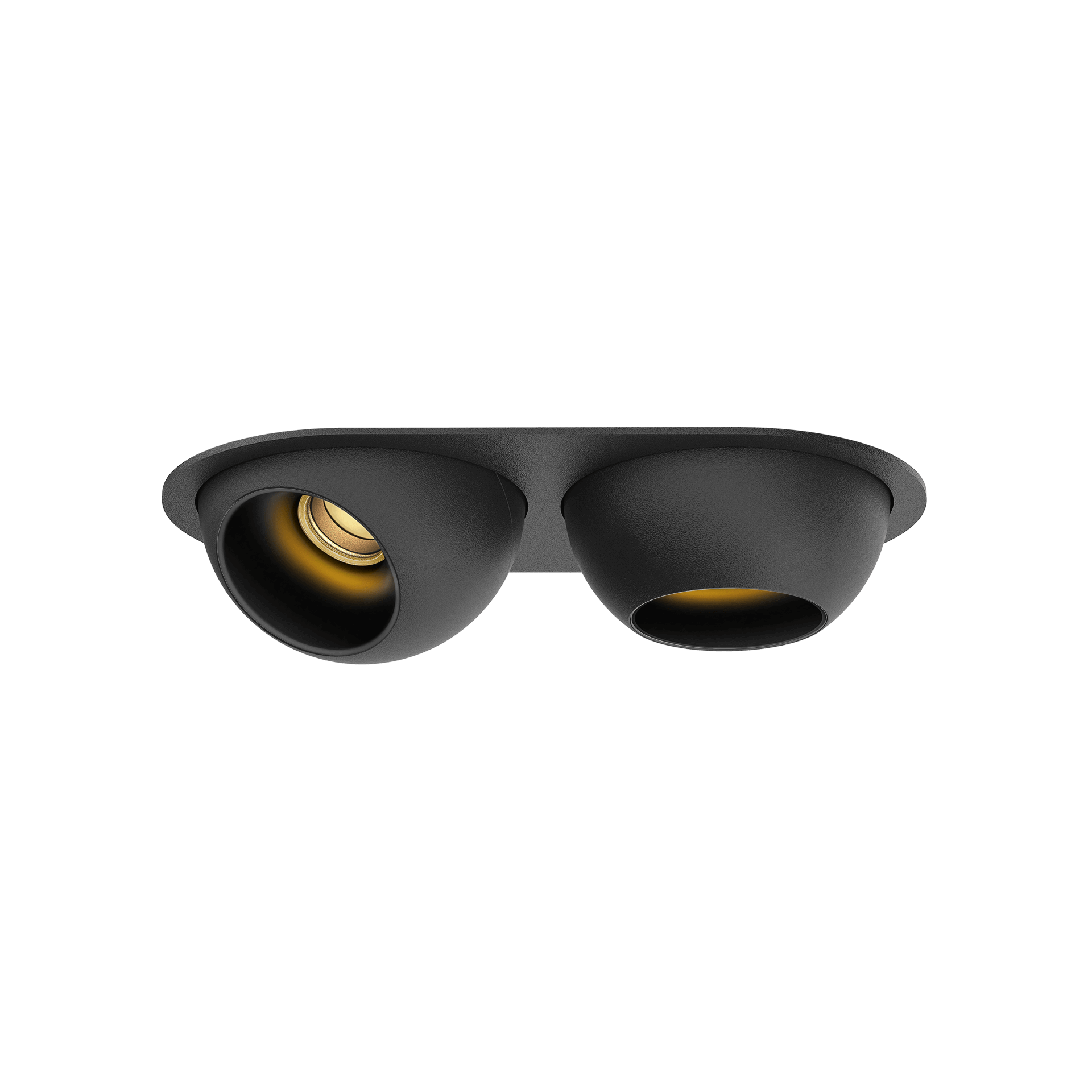

Black version of the Dea Eros XS MU-in duo with black gloss reflector, a recessed luminaire designed by Karizma Luce.

SKU	: 145ABB183034BGP0
Housing Material	: Aluminum Die Cast
Housing Colour	: Black (RAL 9005)
Luminaire Dimension [mm]	: 72mmx149,5mm
Cut-Out [mm]	: 70x142mm
Optic	: Reflector
Reflector Colour	: Black High Gloss
Beam Angle [deg]	: 34°
System Power [W]	: 2x7W
Luminous Flux [lm]	: 2x300lm
System Efficiency [lm/W]	: 43lm/W
Light Source	: Dim to Warm (1800K - 3000K / CRI90)
CCT [K]	: 1800K-3000K Dim to Warm
CRI [Ra]	: 90
Chromaticity Tolerance	: 3 MacAdam
Mains Voltage [VAc]	: 220-240V / 50-60Hz
Power Supply	: Included Phase Cut
Ambient Temperature [degC]	: 35°C
Ingress Protection	: IP20
Light Source Energy Class	: F
Light Source Identifier	: BXRV-DR-1830G-0600-A-23
Lifetime/Failure Rate [h]	: 50000h
Electrical Safety Class	: Class II
Net Weight [Kg]	: 0.4Kg
Certifications/Declarations	: CE/UKCA
Warranty [Y]	: 5Y

All rated values @ ambient temperature of 25° C. Electric and photometric values are initially subject to a tolerance of +/- 10%. Tolerance of color temperature +/- 150K. Technical data can change without prior notice.
